WTE 252 light

Machine type

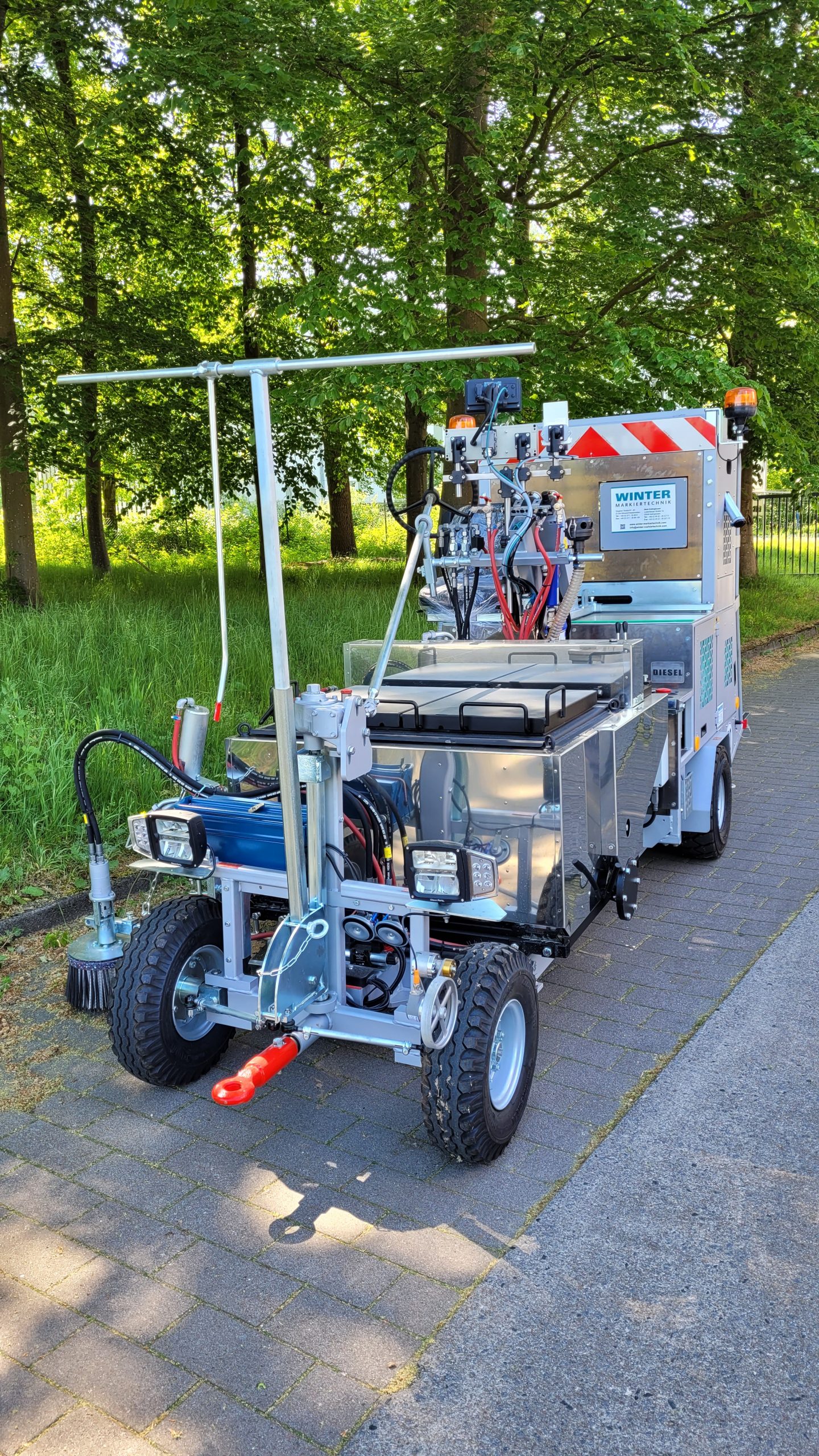

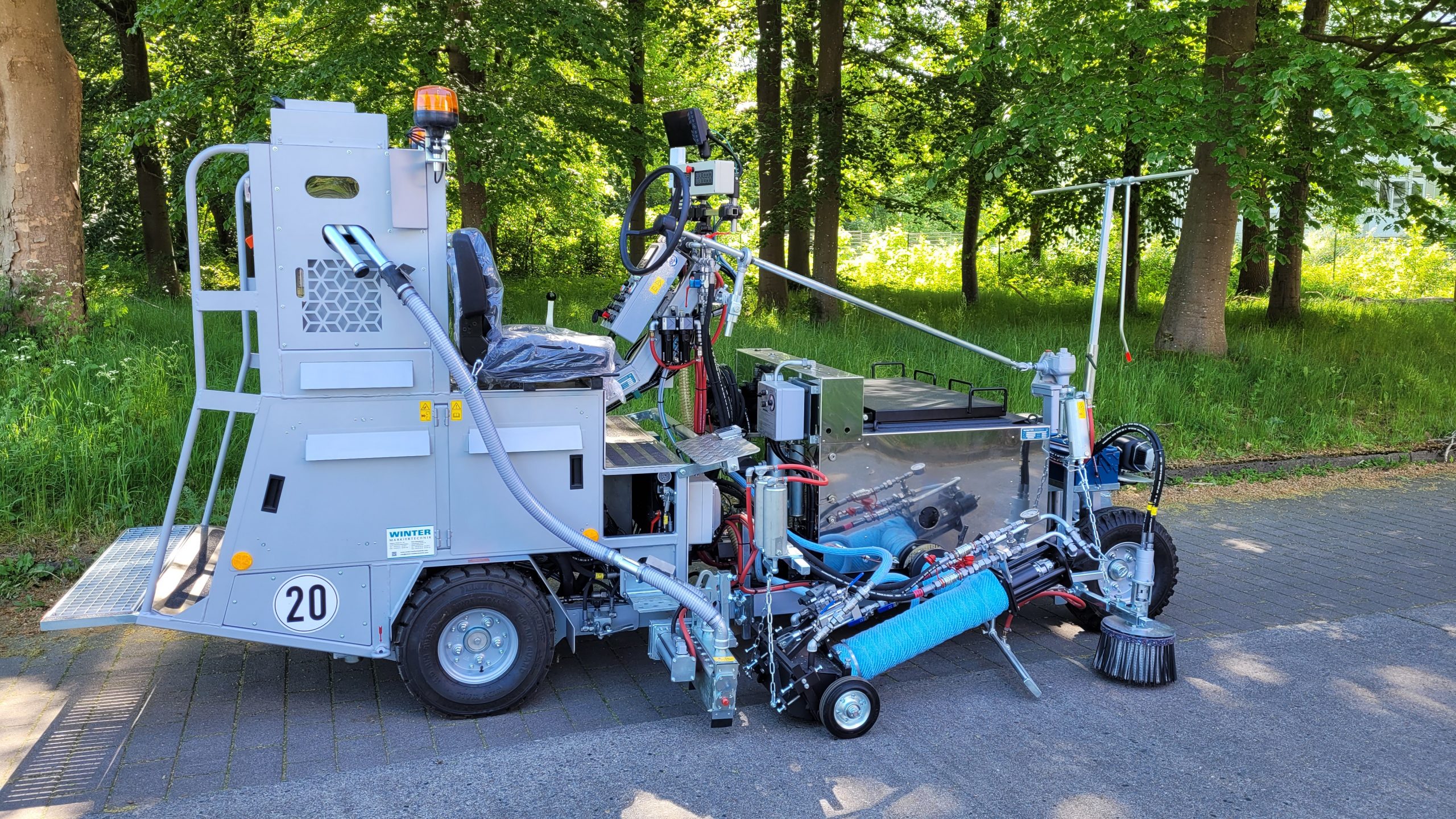

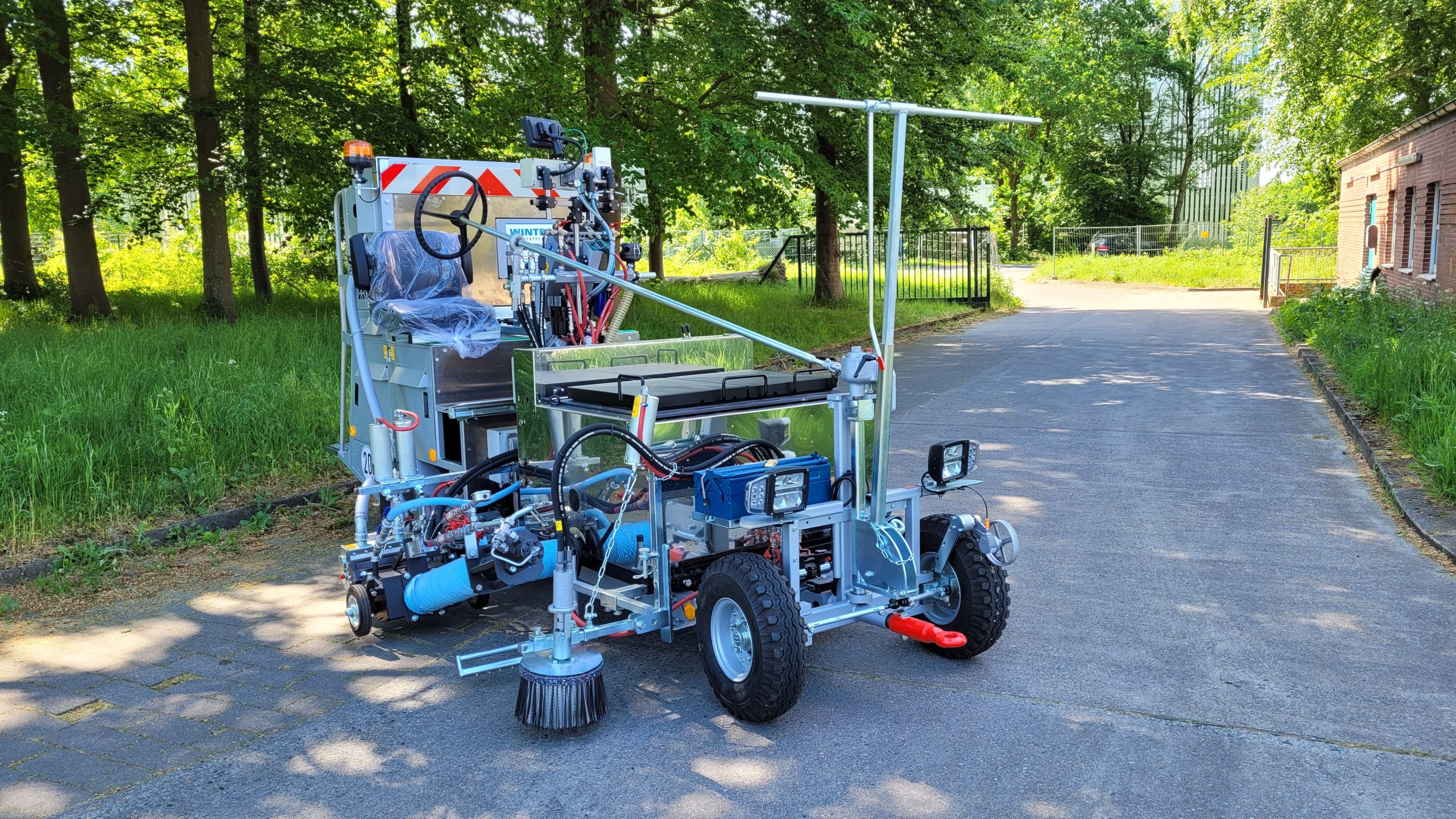

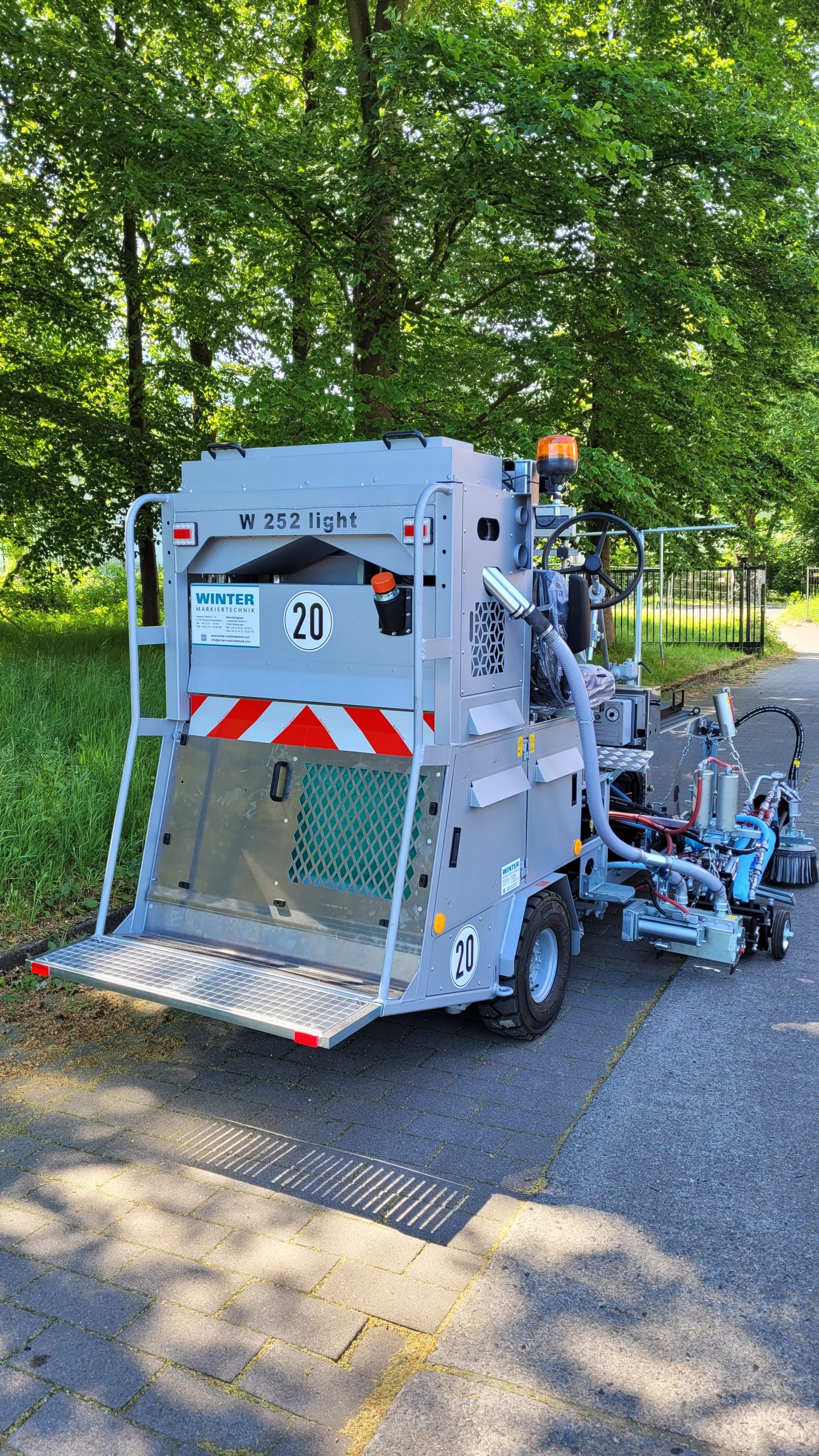

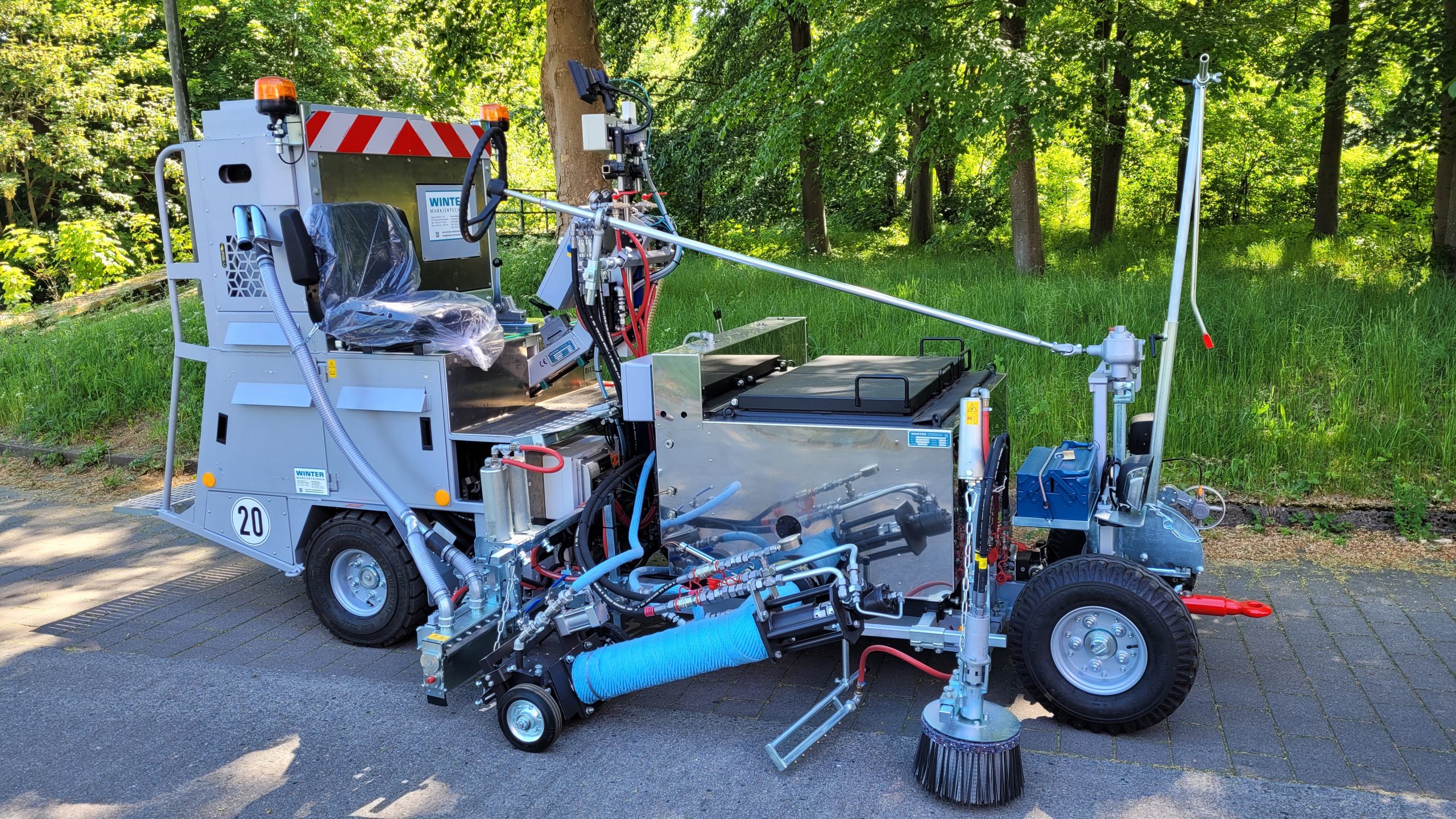

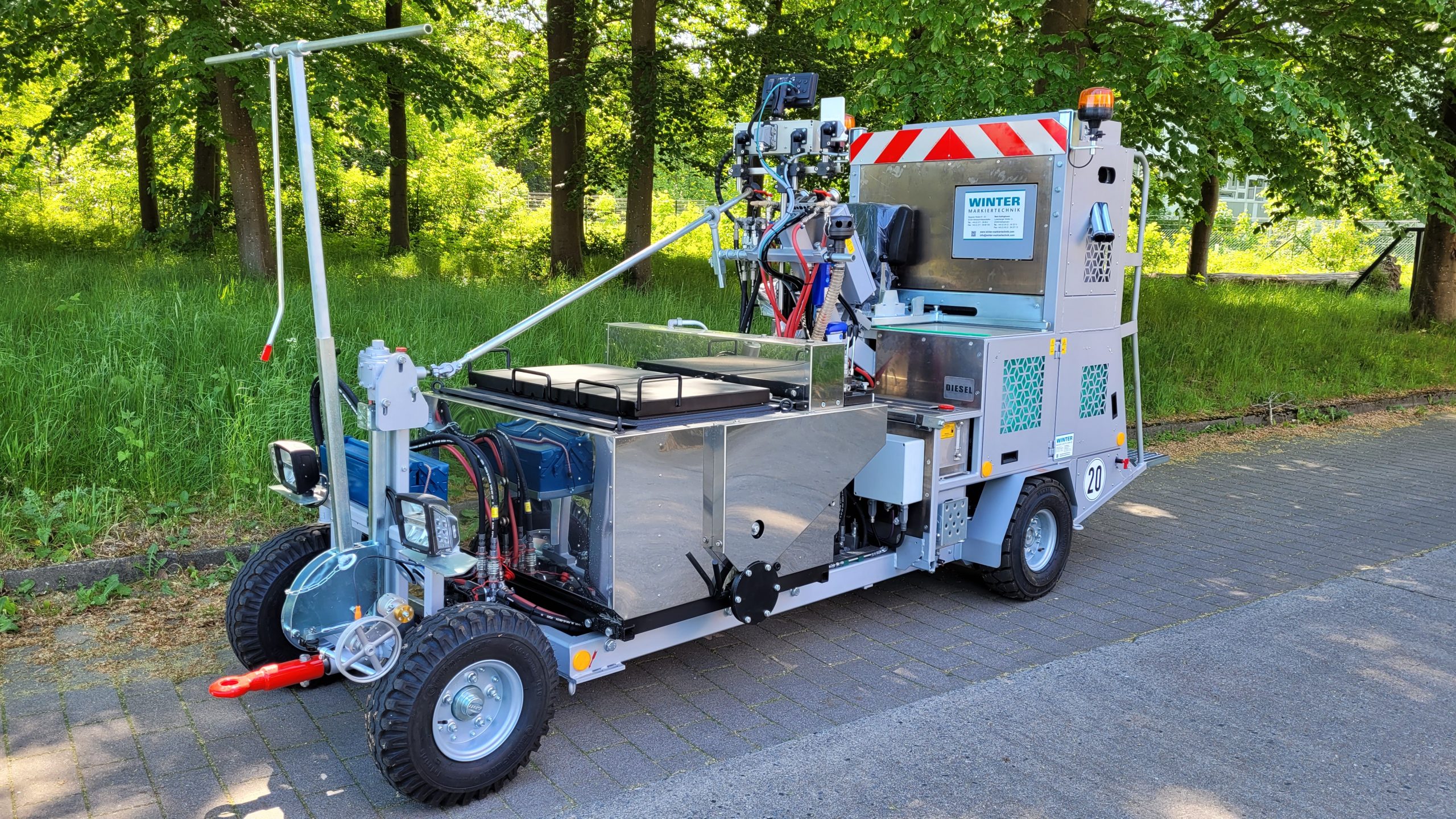

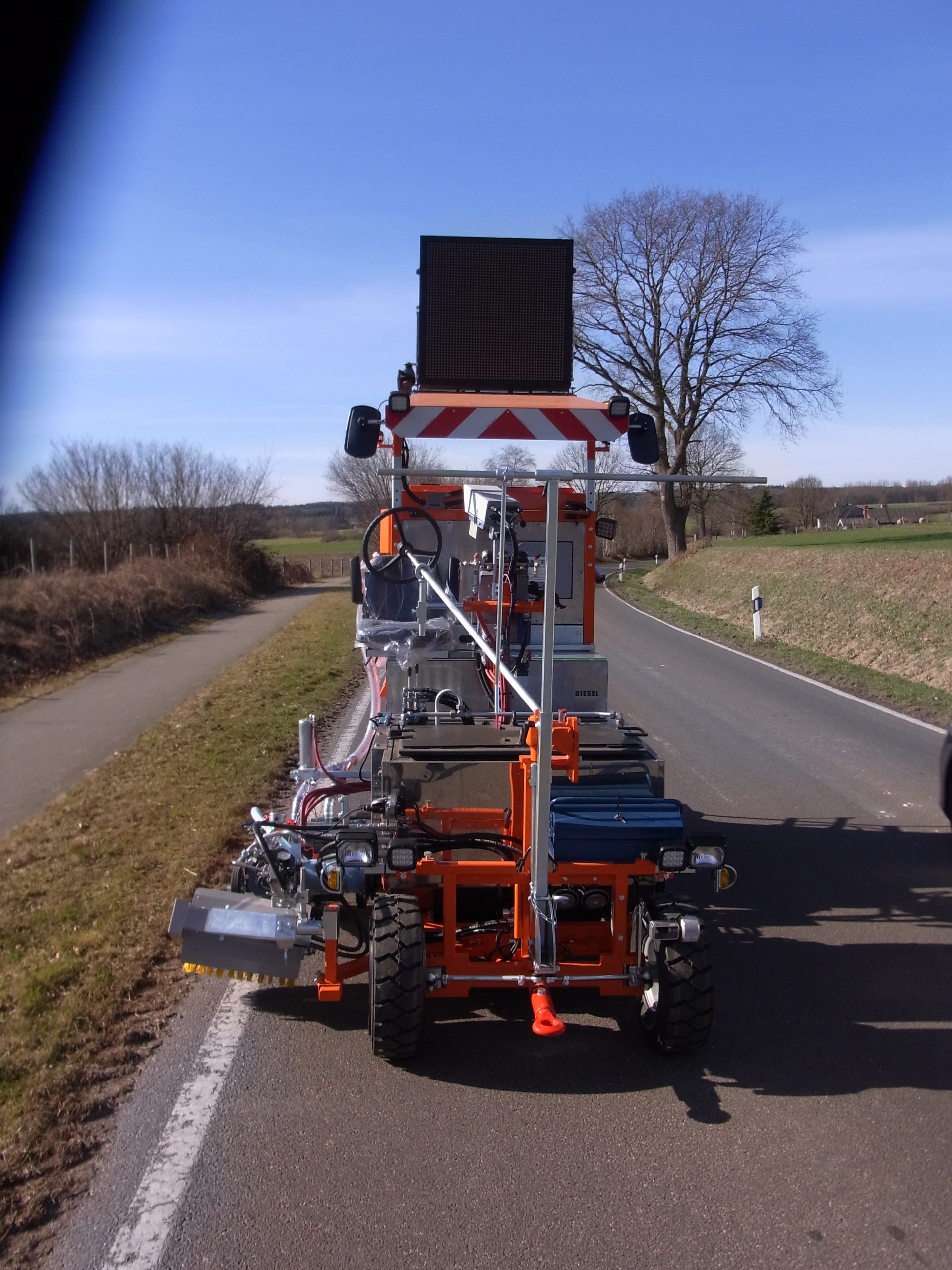

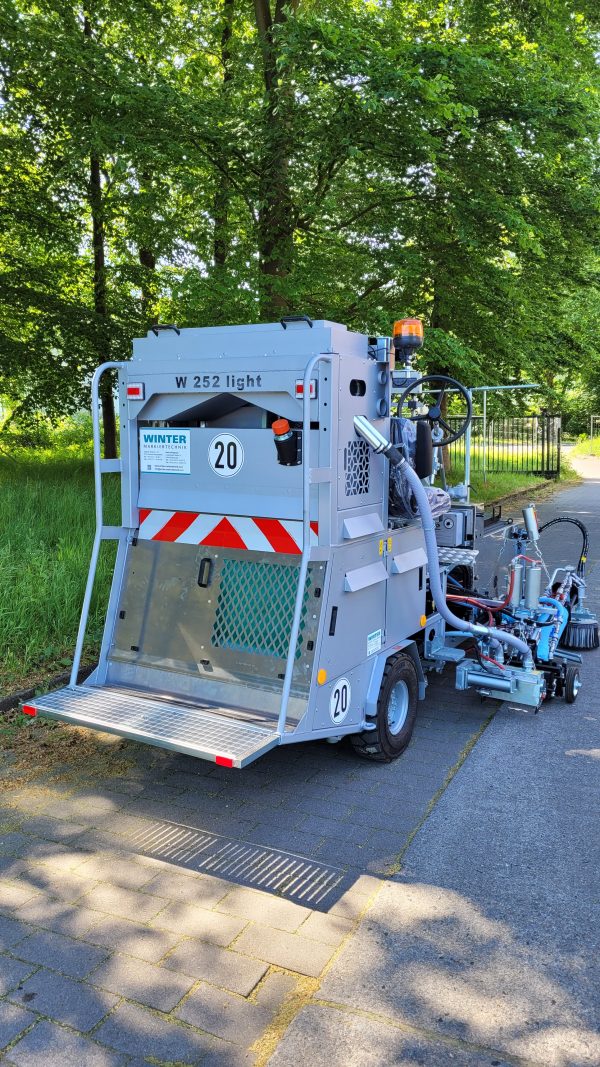

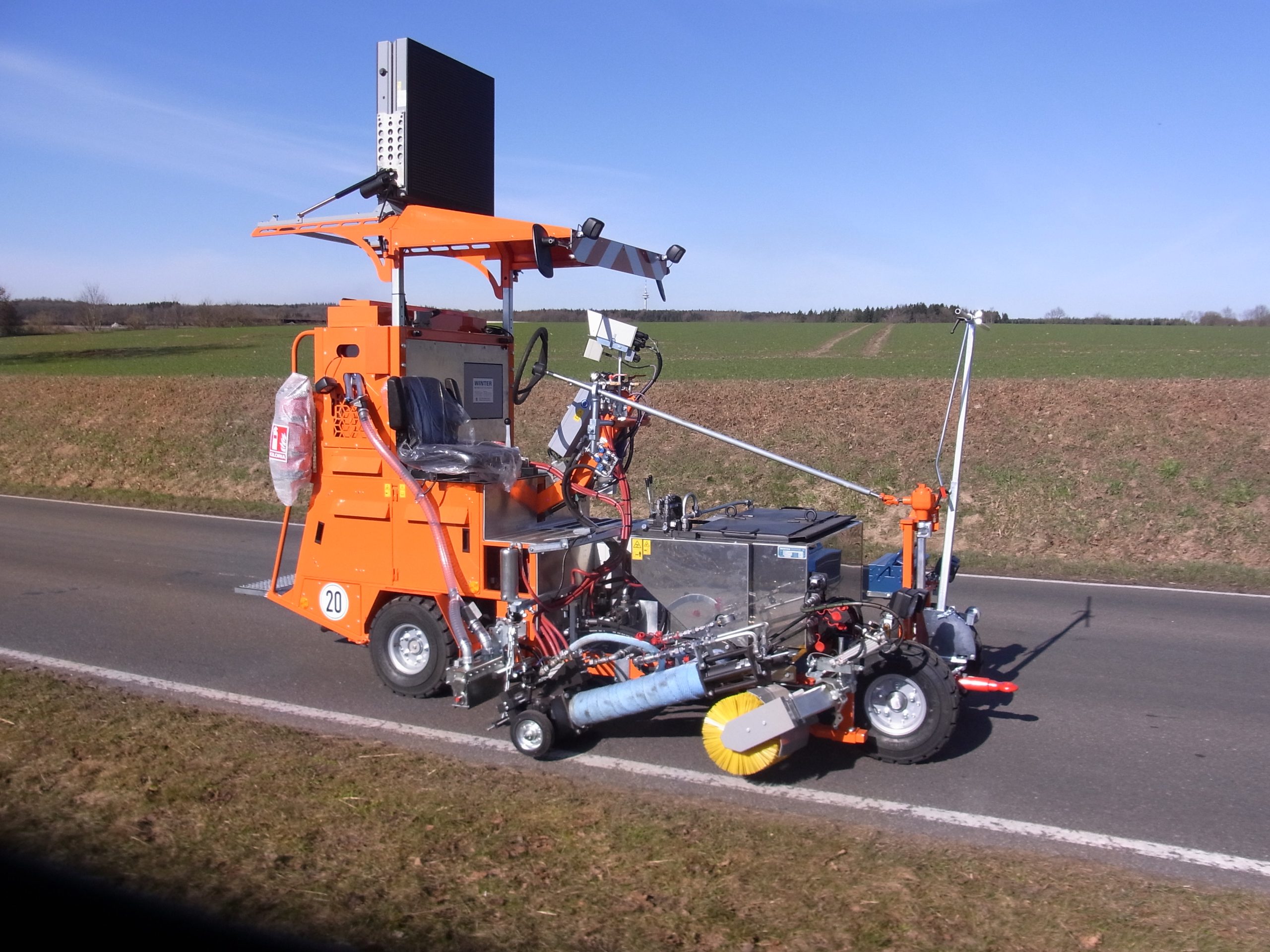

Road marking machine WTE 252 light

Engine

Kubota diesel engine type D1803-CR-E5B-EU, EU STAGE V,  38  PS (28 kW bei 2700 U/min)

Fuel

Diesel, approx. 47 liters

Electrical system

12 V

Steering

Mechanical via worm roller steering (standard)

Drive / brake system

hydrostatic, hydrostat simultaneously service brake,

Hydraulically actuated multi-disc brake as parking brake

Wheels

front: 6.00-9 12PR, 5 hole-rim / rear: 6.00-9 12PR, 5 hole-rim

Compressor

Screw compressor type EVO 2, mechanically driven via poly V-belt,

Delivery rate 1,000 l/min

Operating air pressure

7 bar, silenced safety valve

Thermoplastic container

approx. 250 liters, with agitator - other container sizes on request

Thermal oil heating

Choice of gas or diesel heating

Marker unit

Extruder wegeabhängig, verschiedene Klappenbreiten verfügbar

Glass bead tank

approx. 125 liters (standard), unpressurized

Glass bead equipment

Optional bead gun or path-dependent bead spreader up to 30 cm

Additional equipment

Quick cleaning device for extruder head, others on request

Empty/total weight

approx. 1,800 - 2,500 kg (varies depending on equipment)

Dimensions, LxWxH (without equipment)

approx. 4.75 m x 1.23 m x 2.1 m (varies depending on equipment)
