| Machine type |

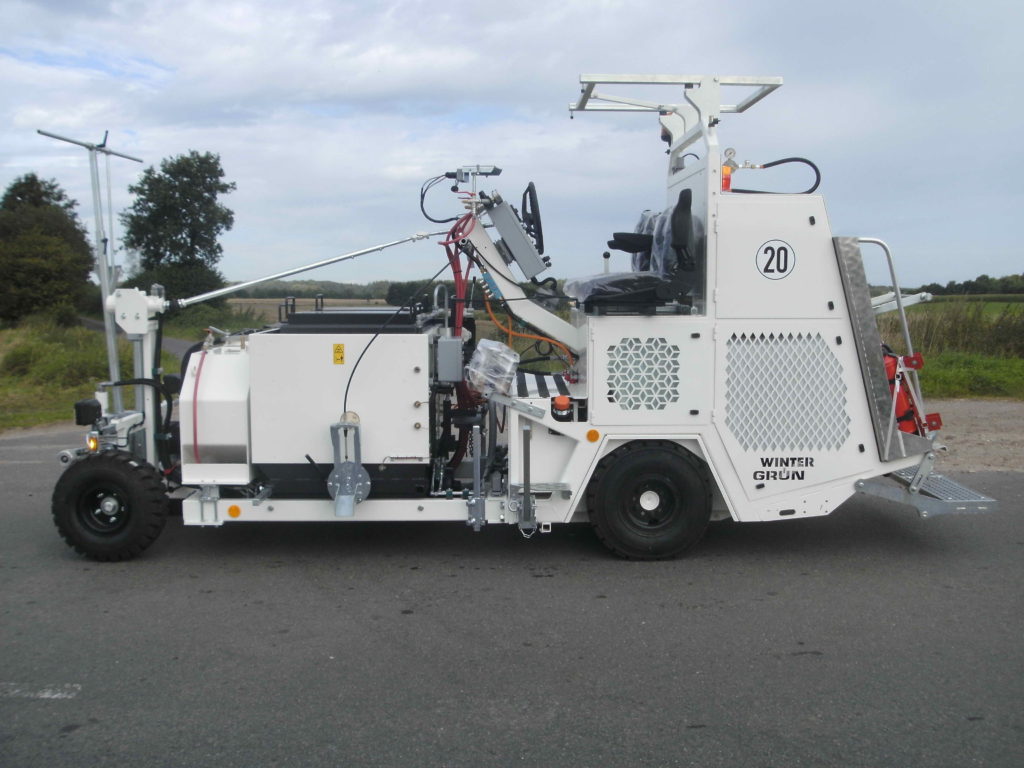

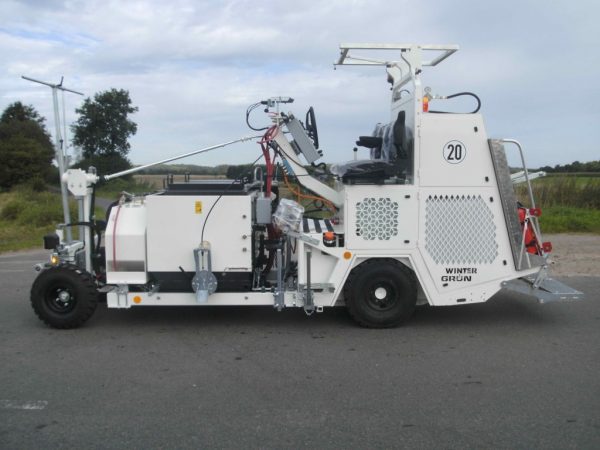

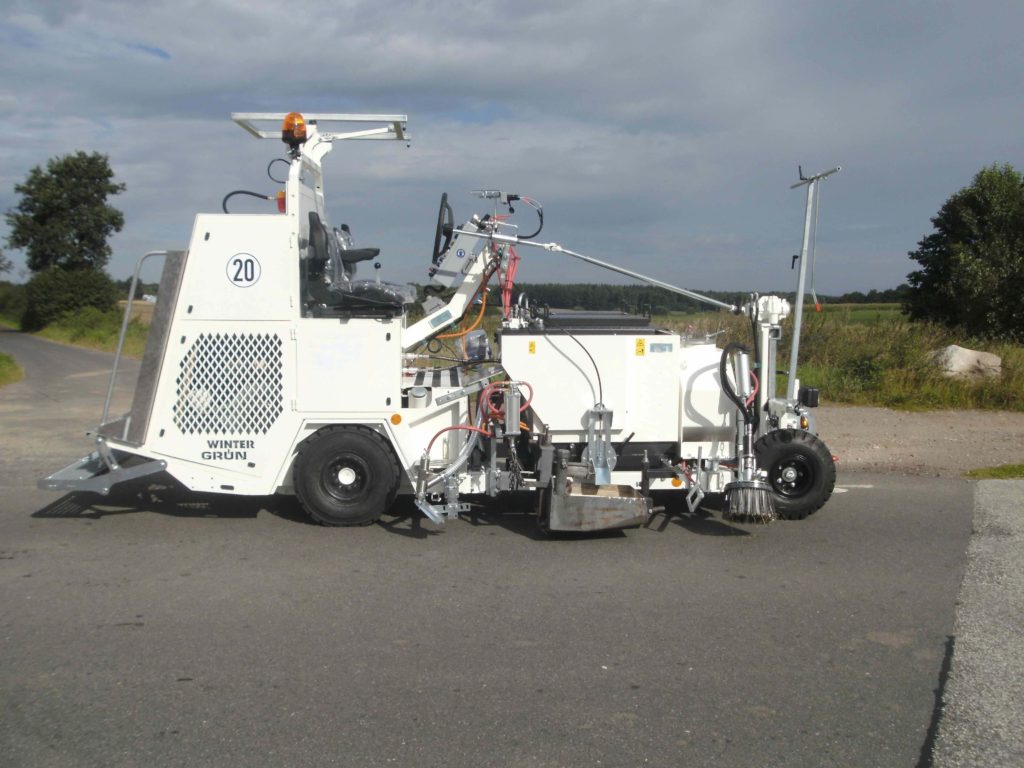

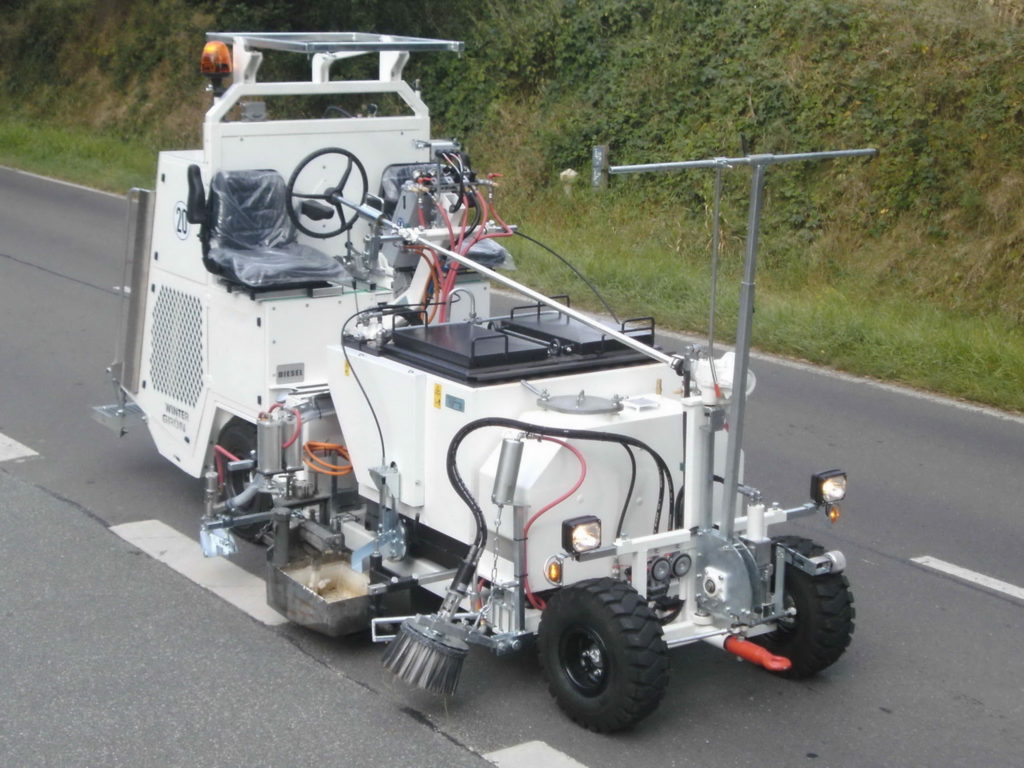

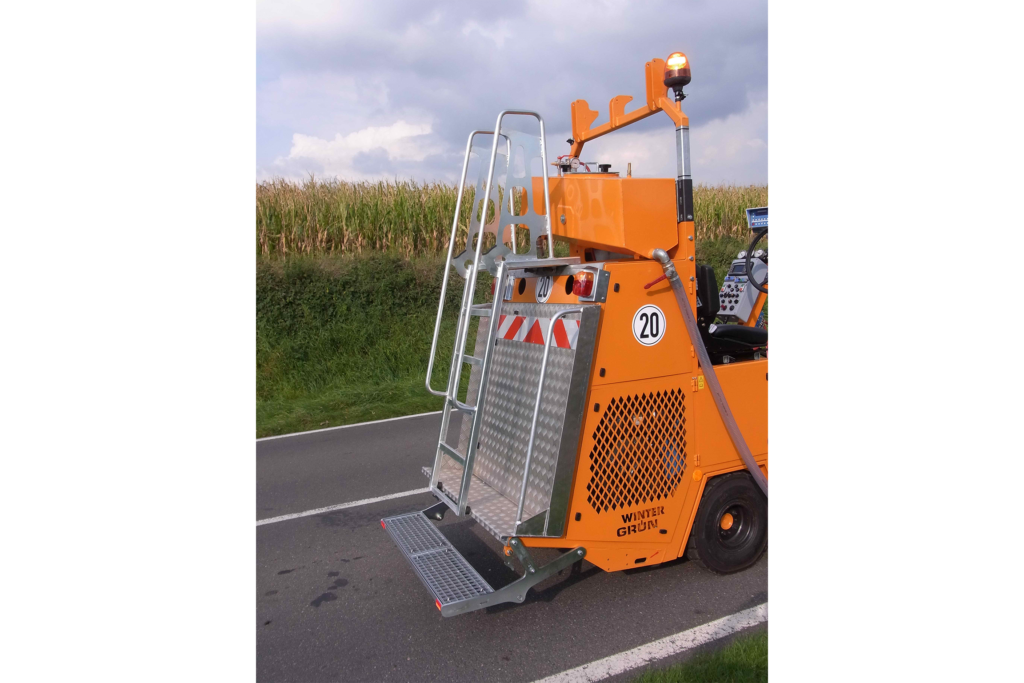

Road marking machine WT 351 GTLR |
| Engine |
Perkins 404F-E22TA, 58,5 HP (43 kW), at 2400 r/min |
| Fuel |
diesel, capacity 50 liter |
| Electrical system |
12 V, battery 88 Ah |
| Steering |
strong standard mechanical steering, on request hydraulic assisted steering / hydraulic |
| Drive / brake system |
hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake |
| Wheels |
front: 21×8 – 9, 5 hole-rim / rear: 6.50-10PR, 5 hole-rim |
| Compressor |
Boge screw type compressor, mechanically driven by poly-v-belt, effective air supply 1500 or 2300 l/min |
| Operating air pressure |
7 bar, silenced safety valve |
| Thermoplastic container |
400 ltr., with agitator, other container capacities on request |
| Thermal oil heating |
on request gas / diesel |
| Marker unit |
screed box |
| Additional equipment |
on request, profiles- or structure markings |
| Glass bead equipment |
on request, metering bead dispenser up to 300 mm |
| Empty- / total weight |
approx. 2500 kg / 3800 kg |
| Dimensions Length x width x height |
approx. 4,40 m x 1,26 m x 1,90 m (without equipment) |
Technical modifications and errors excepted,
illustrations similar resp. partly including special accessories.
|
State of art: 07.10.2016_en
|
