Description
|
Machine type |

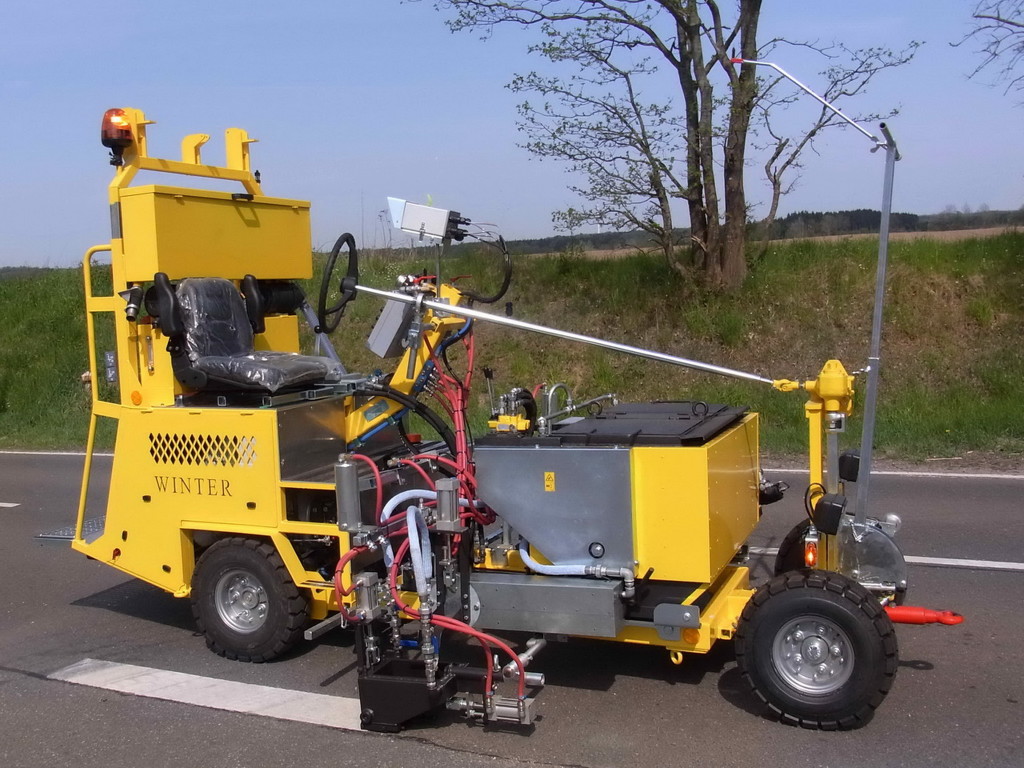

Road marking machine WT 252 light |
|
Engine |
Kubota diesel engine type D1803-CR-E5B-EU, EU STAGE V, 38 PS (28 kW bei 2700 U/min) |
|
Fuel |
Diesel, approx. 47 liters |
|
Electrical system |
12 V |
|
Steering |
Mechanical via worm roller steering (standard) |
|
Drive / brake system |
hydrostatic, hydrostat simultaneously service brake, Hydraulically actuated multi-disc brake as parking brake |
|
Wheels |
front: 6.00-9 12PR, 5 hole-rim / rear: 6.00-9 12PR, 5 hole-rim |
|
Compressor |
Screw compressor type EVO 2, mechanically driven via poly V-belt, Delivery rate 1,000 l/min |
|
Operating air pressure |
7 bar, silenced safety valve |
|
Thermoplastic container |
approx. 225 liters, with agitator - other container sizes on request |
|
Thermal oil heating |
Choice of gas or diesel heating |
|
Marker unit |
screed box |
|
Glass bead tank |
approx. 125 liters (standard), unpressurized |
|
Glass bead equipment |
Optional bead gun or path-dependent bead spreader up to 30 cm |
|
Additional equipment |
on request |
|
Empty/total weight |
approx. 1,800 - 2,500 kg (varies depending on equipment) |
|
Dimensions, LxWxH (without equipment) |
approx. 4.75 m x 1.23 m x 2.1 m (varies depending on equipment) |
