| Machine type |

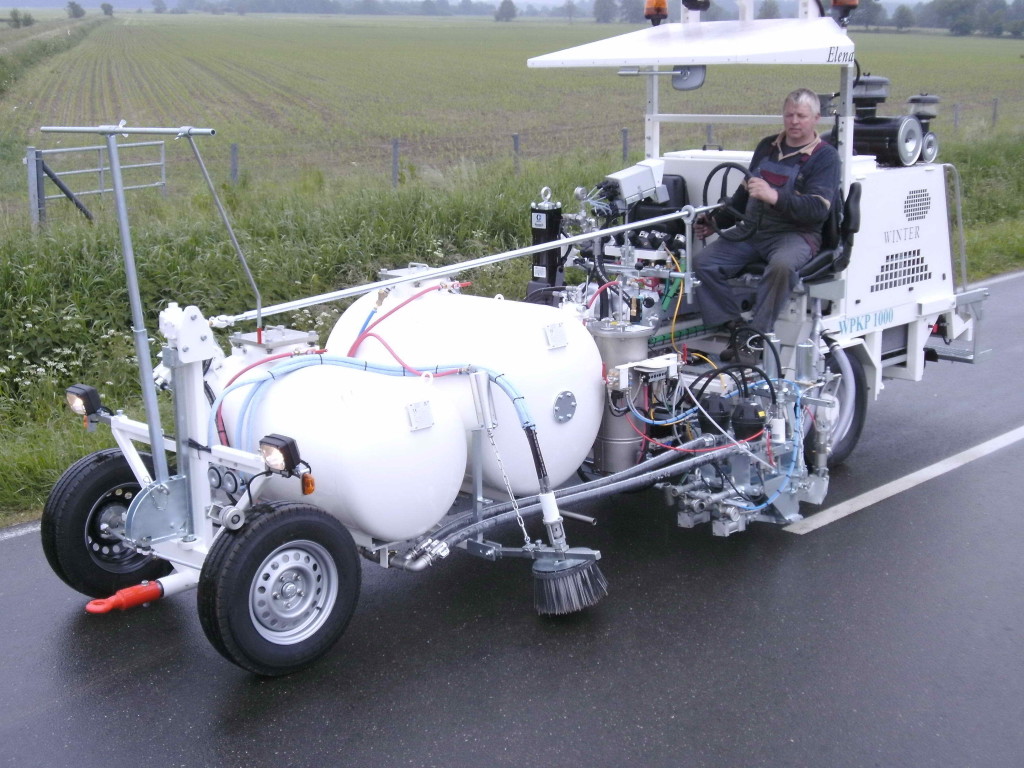

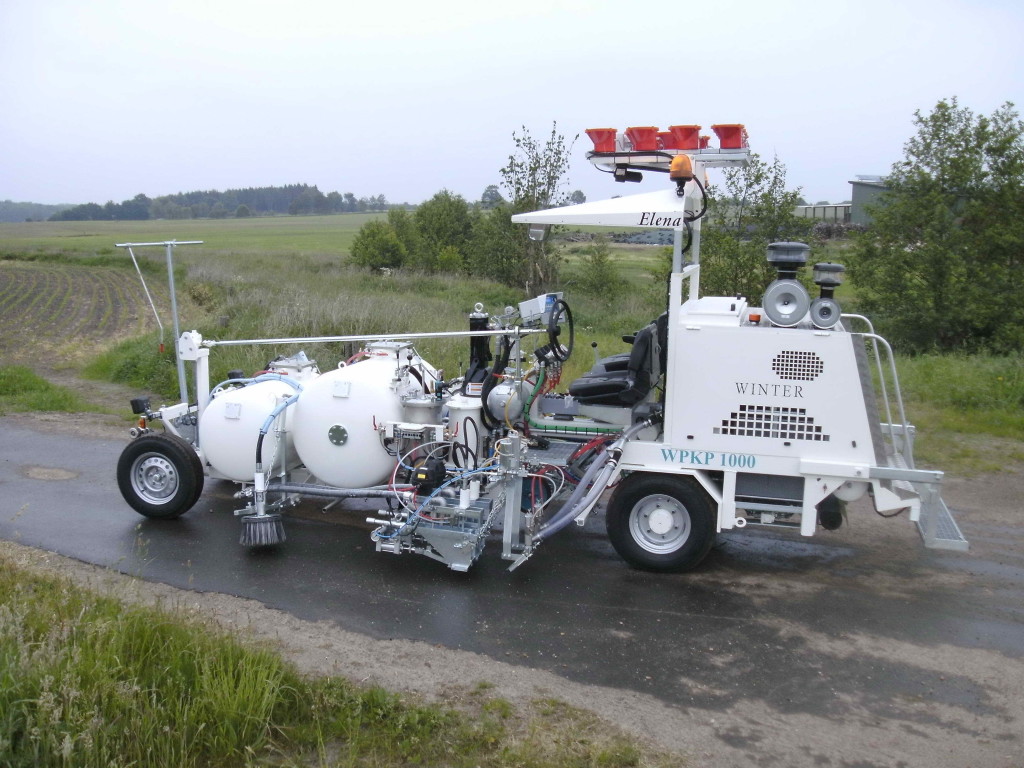

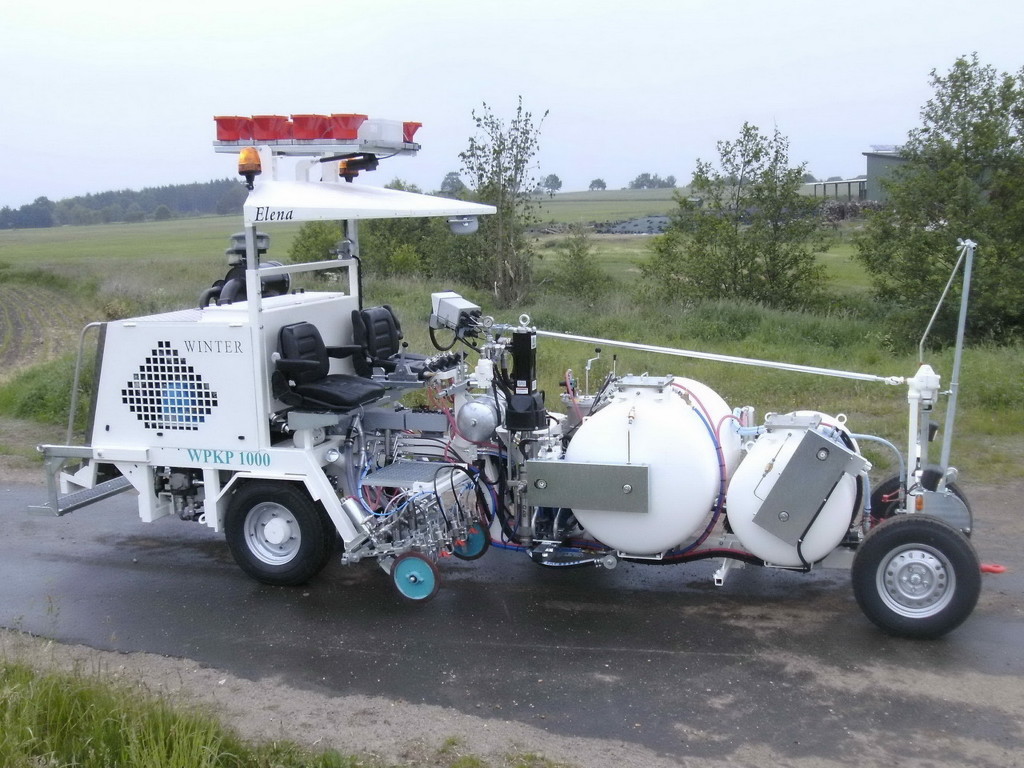

Road marking machine WPKP 1000 Kombi |
| Engine |
Kubota V3800 DI-T, 3800 ccm, 100 HP (74 kW), at 2600 r/min |
| Fuel |
diesel, capacity 75 liter |
| Electrical system |
12 V, battery 90 Ah |
| Steering |
strong standard mechanical steering, on request hydraulic steering |
| Drive / brake system |
hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake |
| Wheels |
front: 185 R 14 – 5-hole-rim / rear: 215 R 14 – 6-hole-rim |
| Compressor |
3-cylinder Boge compressor Typ SK 36, effective air supply 1465 l/min, mechanically driven by poly-v-belt |
| Operating air pressure |
7 bar, silenced safety valve |
| Paint pressure tank |
front: 410 ltr. / rear: 650 ltr., with agitator, other container capacities on request |
| Paint pump |
Airless type Graco 26 ltr./min., piston-type accumulator with pulsation damper |

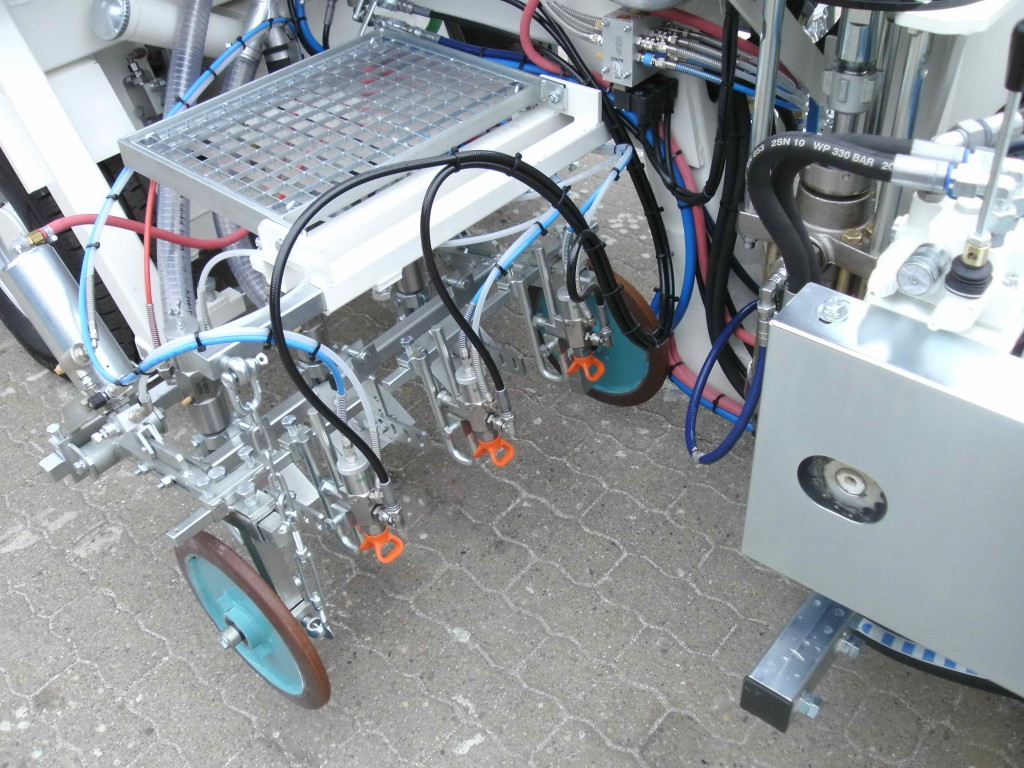

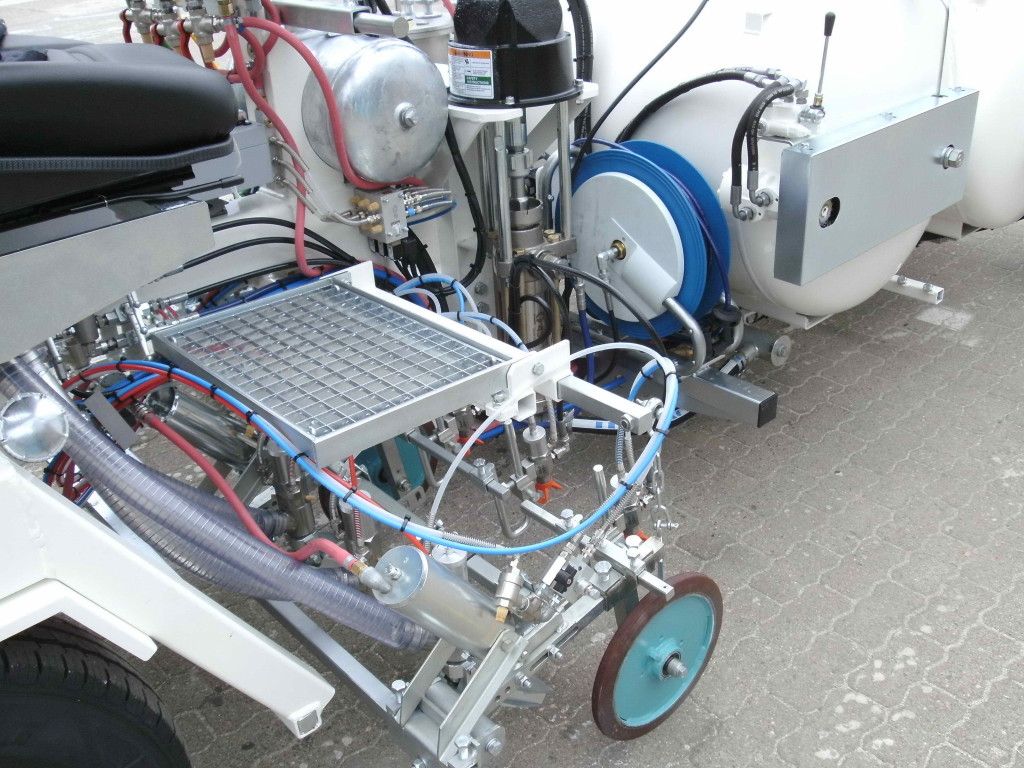

| Marker unit |
on request, two units discless |
| Additional equipment |
on request, hand held spray gun with hose roller |
| Mixing-system |
98 : 2, fluid or powder, static mixer on request |

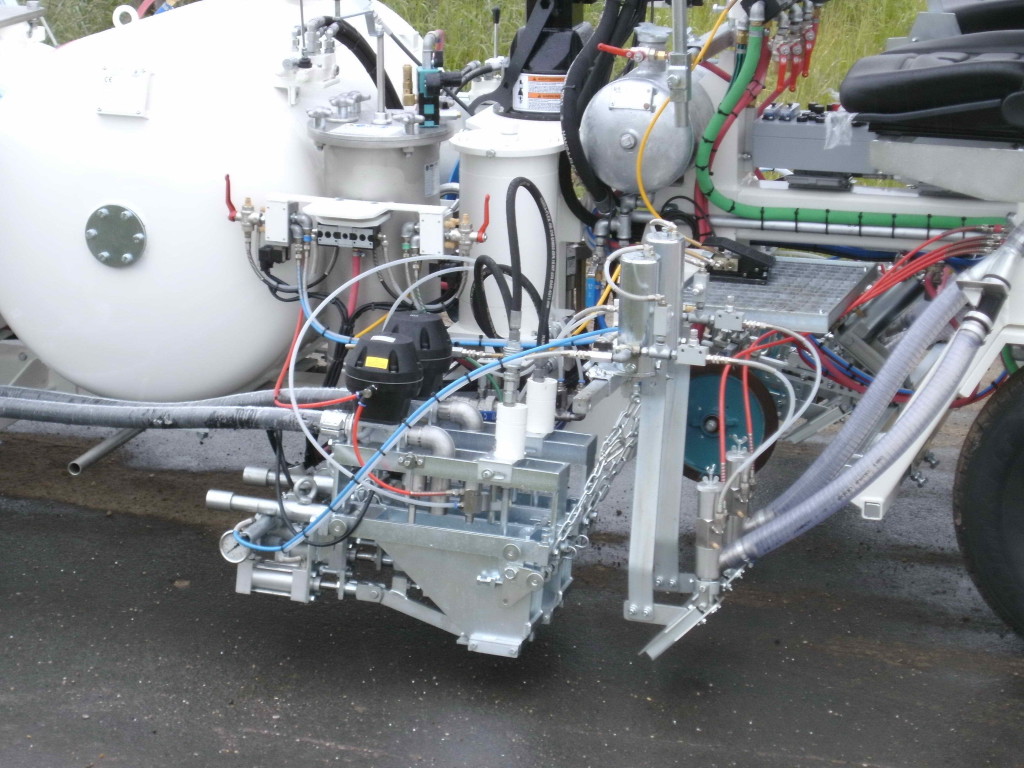

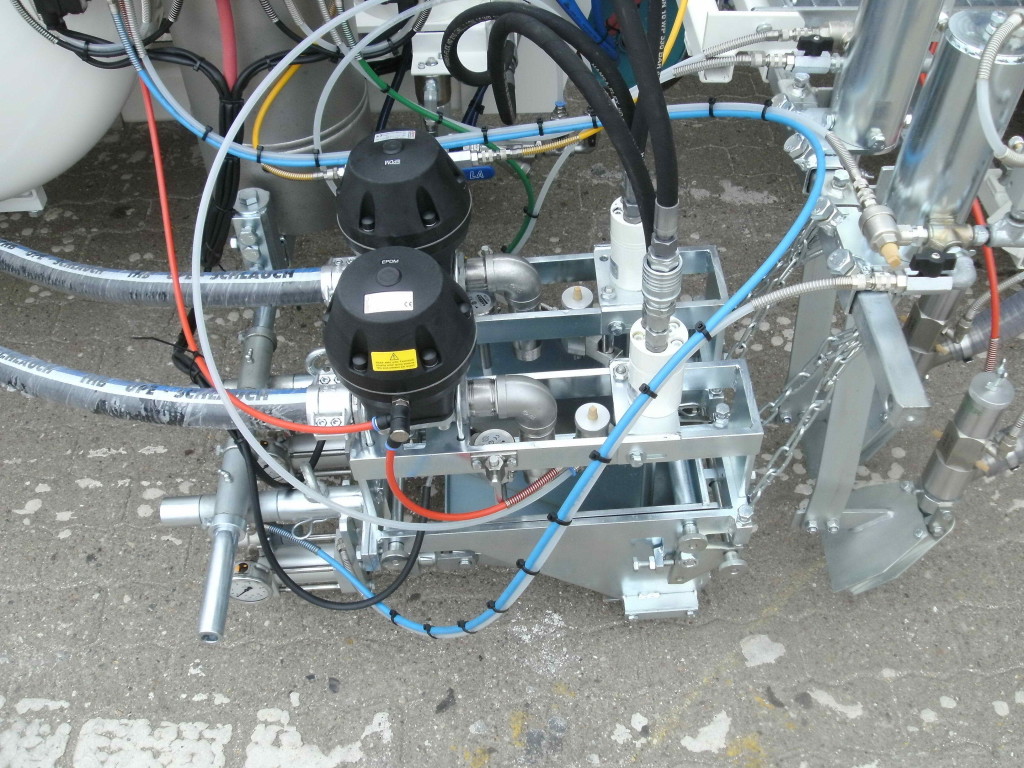

| Marker unit |
screed box for solid line |
| Additional equipment |
on request, profiles- or structure markings |
| Glass bead equipment |
on request, metering bead dispenser up to 300 mm |
| Empty- / total weight |
approx. 2500 kg / 4800 kg |
| Dimensions Length x width x height |
approx. 5,75 m x 1,40 m x 2,20 m (without equipment) |
Technical modifications and errors excepted,
illustrations similar resp. partly including special accessories.
|
State of art: 01.11.2014_e
|
