| Machine type |

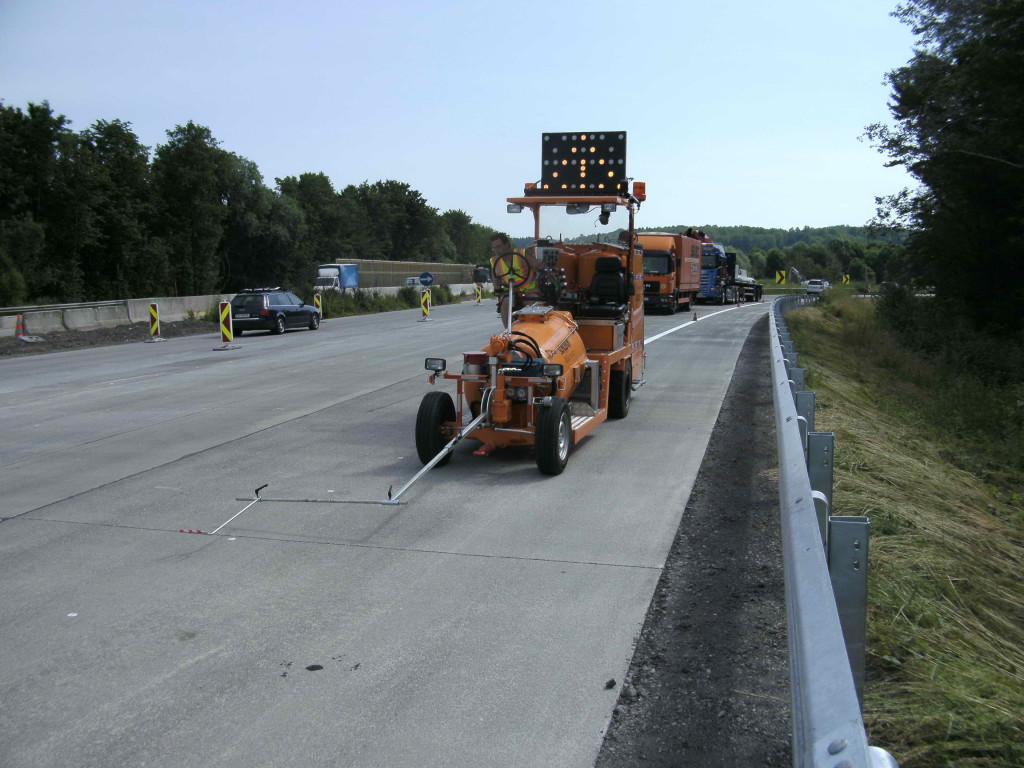

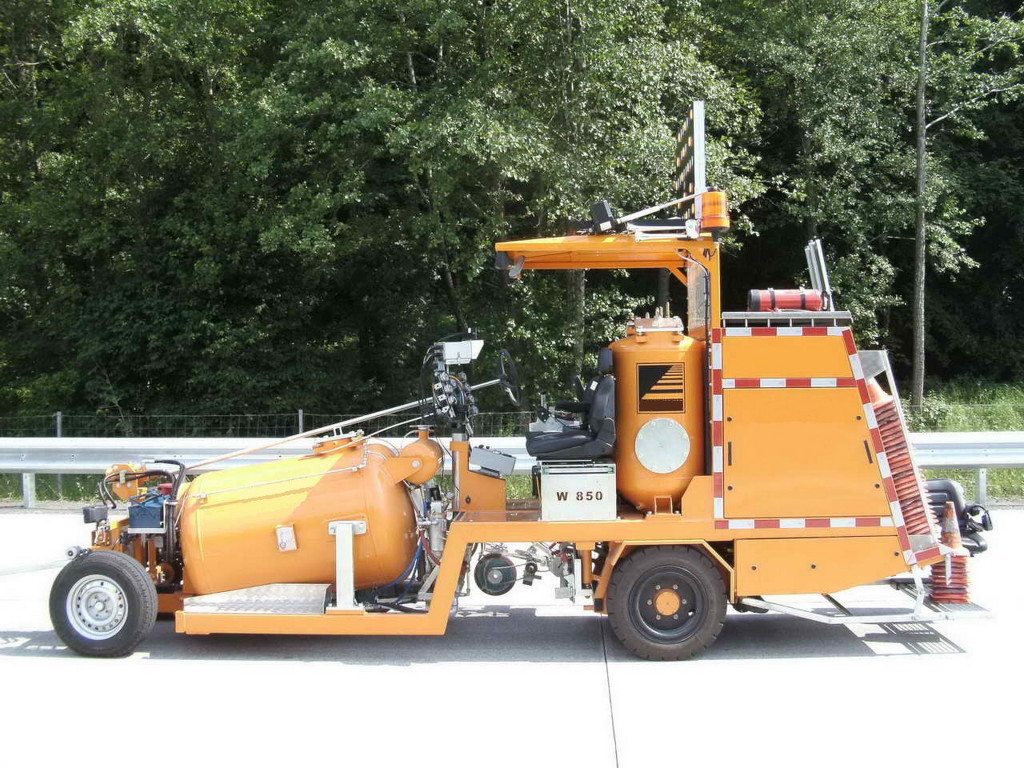

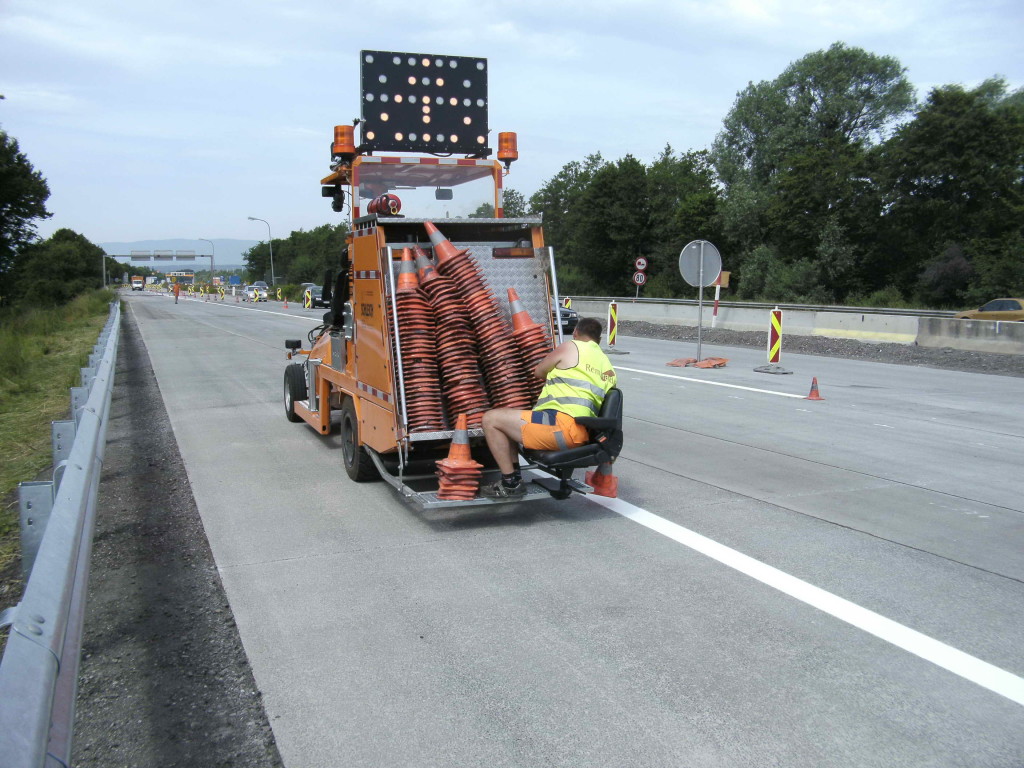

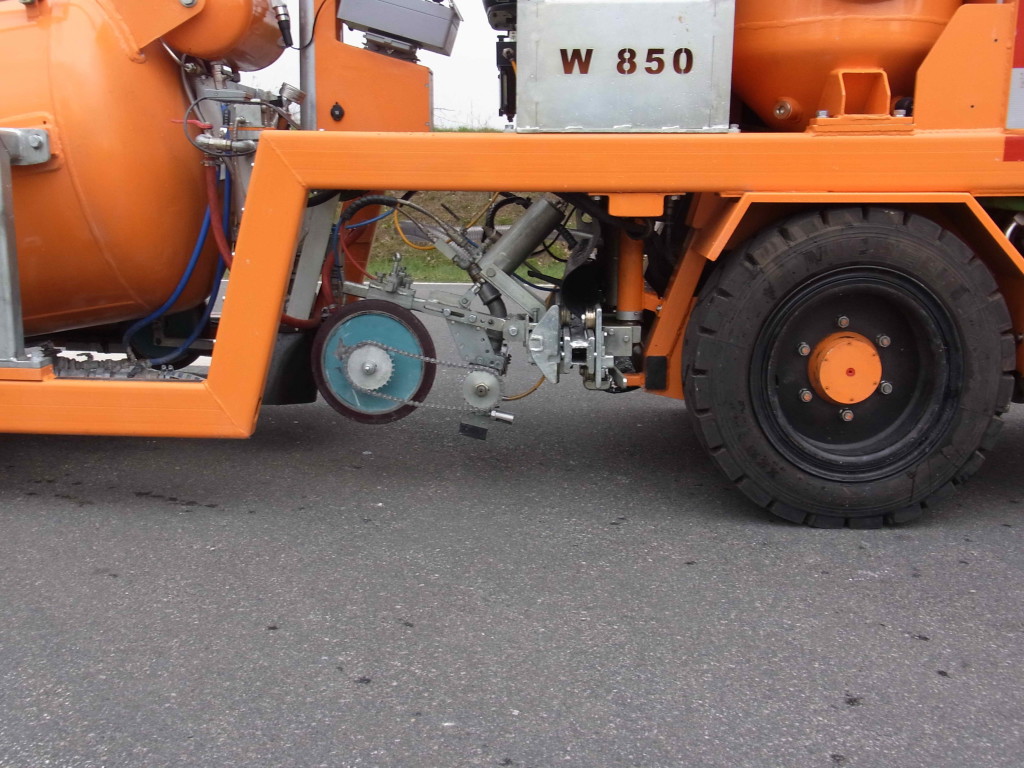

Road marking machine WP 850 |
| Engine |
Kubota V3307, 3331 ccm, 70 HP (51 kW), at 2000 r/min |
| Fuel |
diesel, capacity 100 liter |
| Electrical system |
12 V, battery 100 Ah12 V, battery 100 Ah |
| Steering |
strong standard mechanical steering, on request hydraulic assisted steering / hydraulic |
| Drive / brake system |
hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake, on request 2-stage-drive |
| Wheels |
front: 185 R 14 – 5-hole-rim / rear: 215 R 14 – 6-hole-rim |
| Compressor |
screw type compressor, hydraulically driven, air supply 1850 l/min |
| Operating air pressure |
7 bar self-adjusting, safety valve 8,5 bar |
| Paint pressure tank |
840 ltr., with hydraulically driven agitator, other container capacities on request |
| Glass bead pressure tank |
2x 230 ltr., with water pre separator, on request filling sieve / filling level monitor |

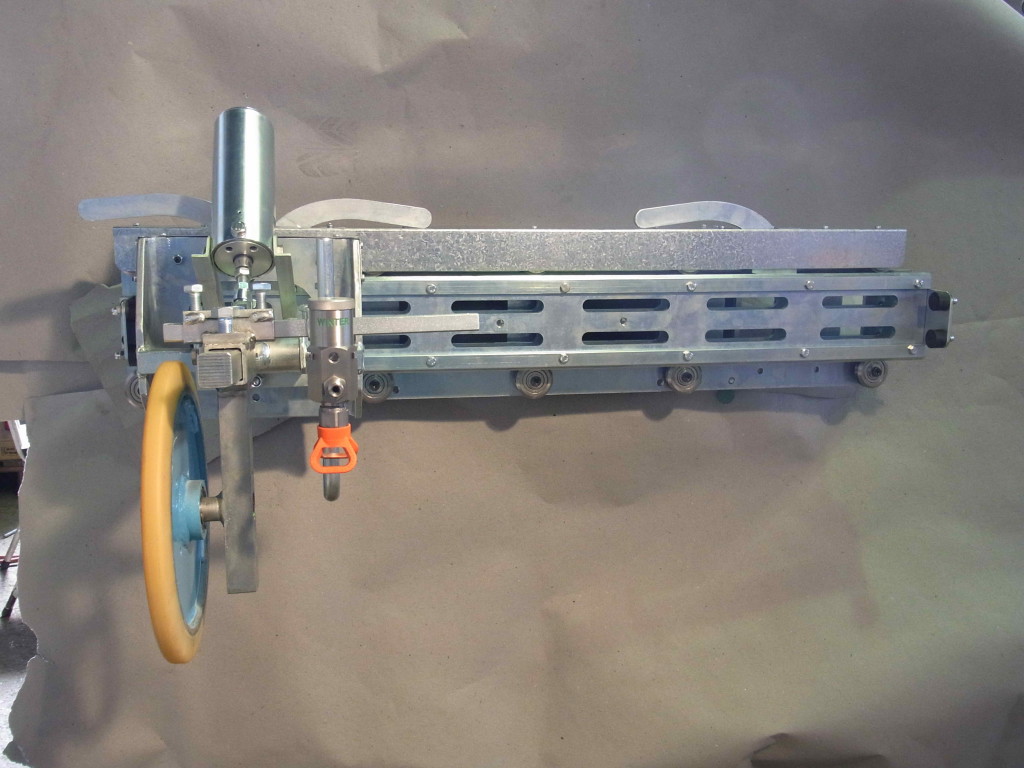

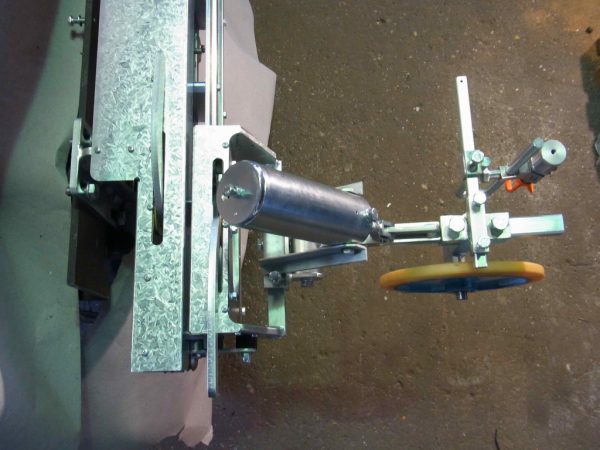

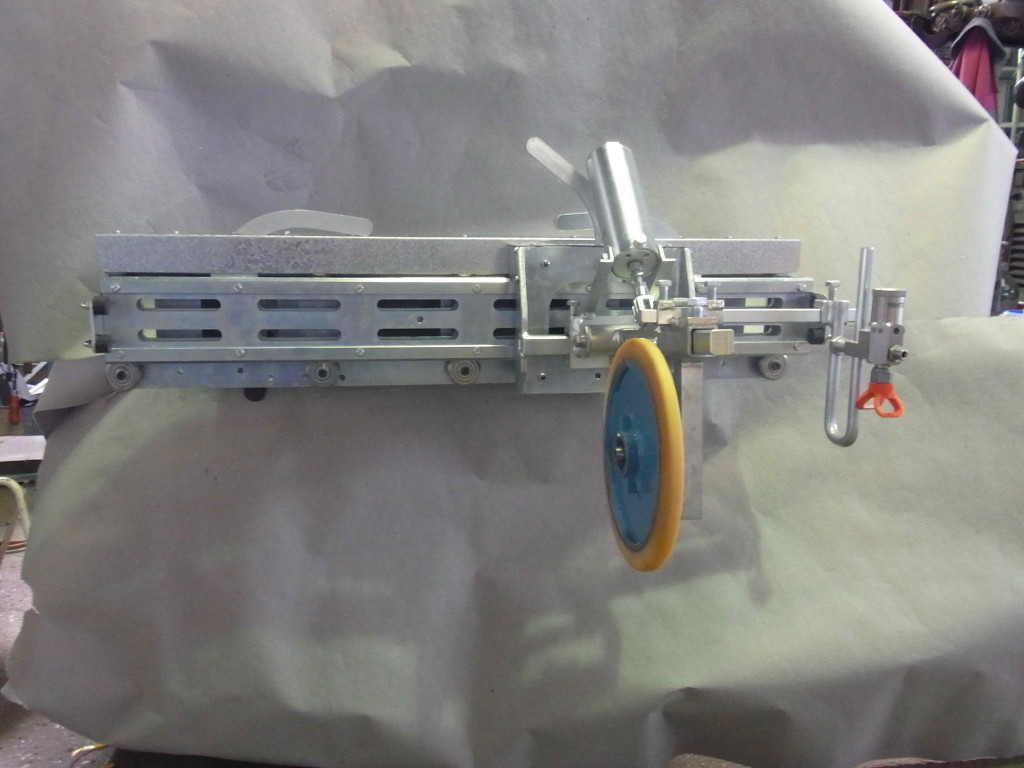

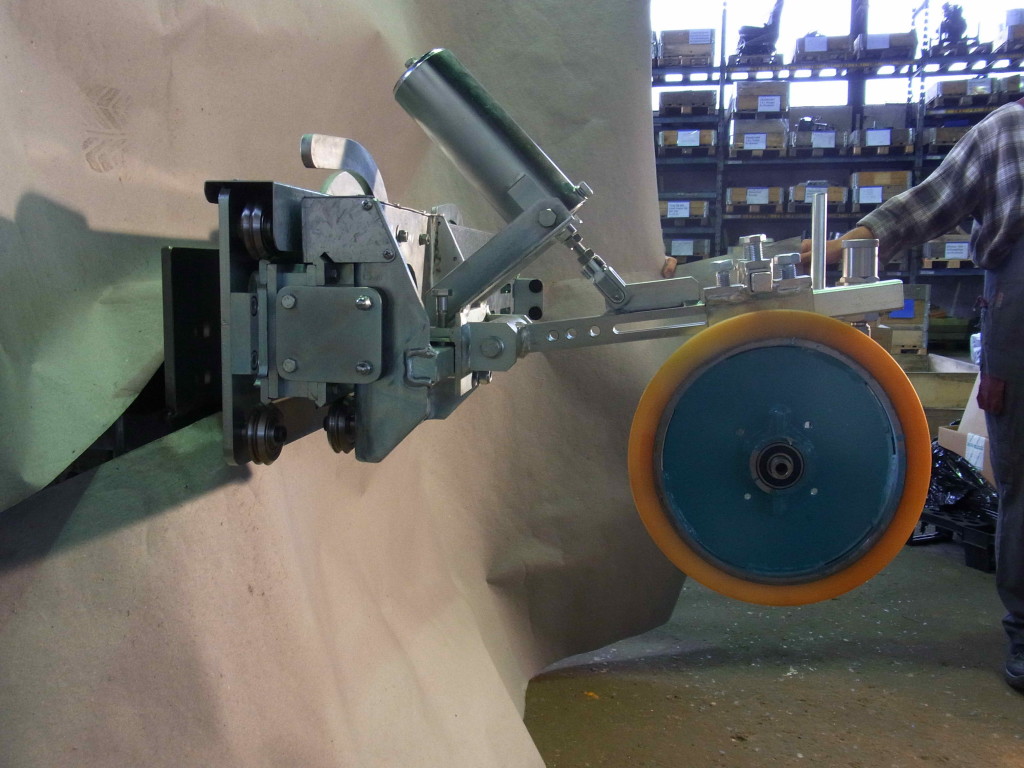

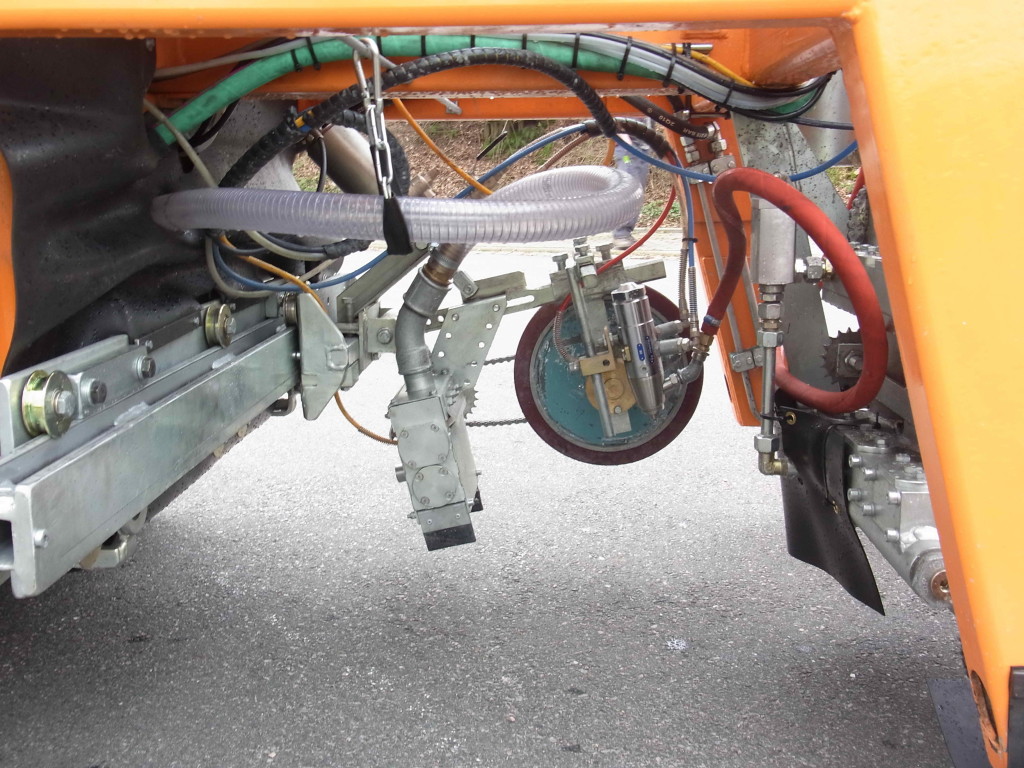

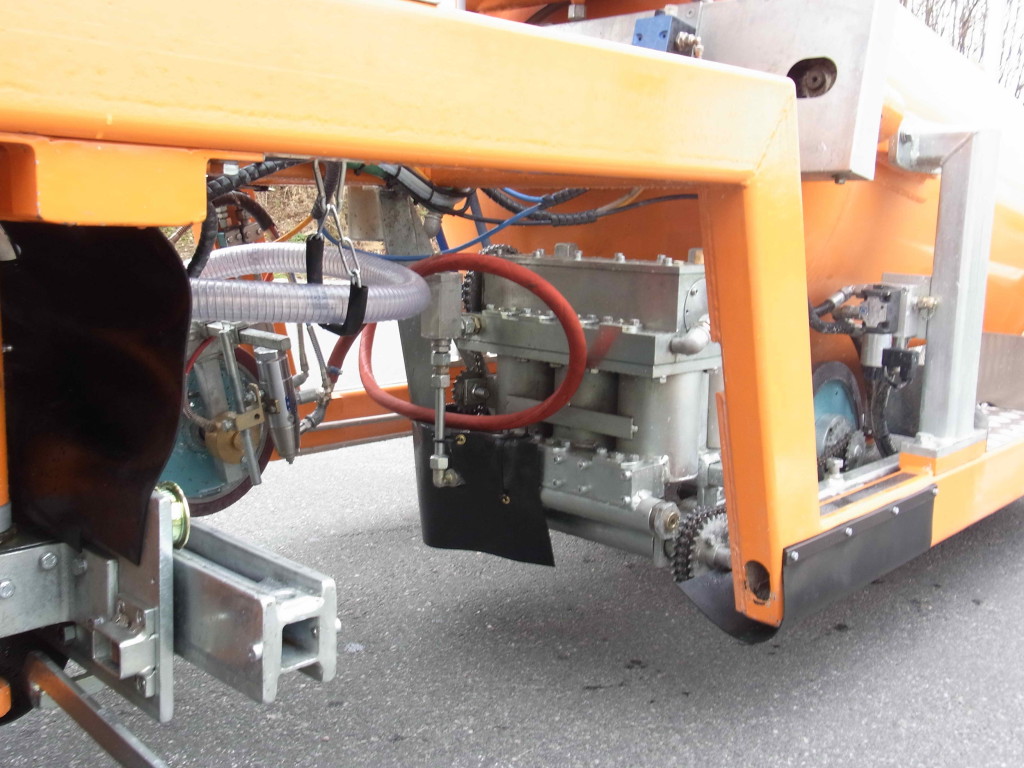

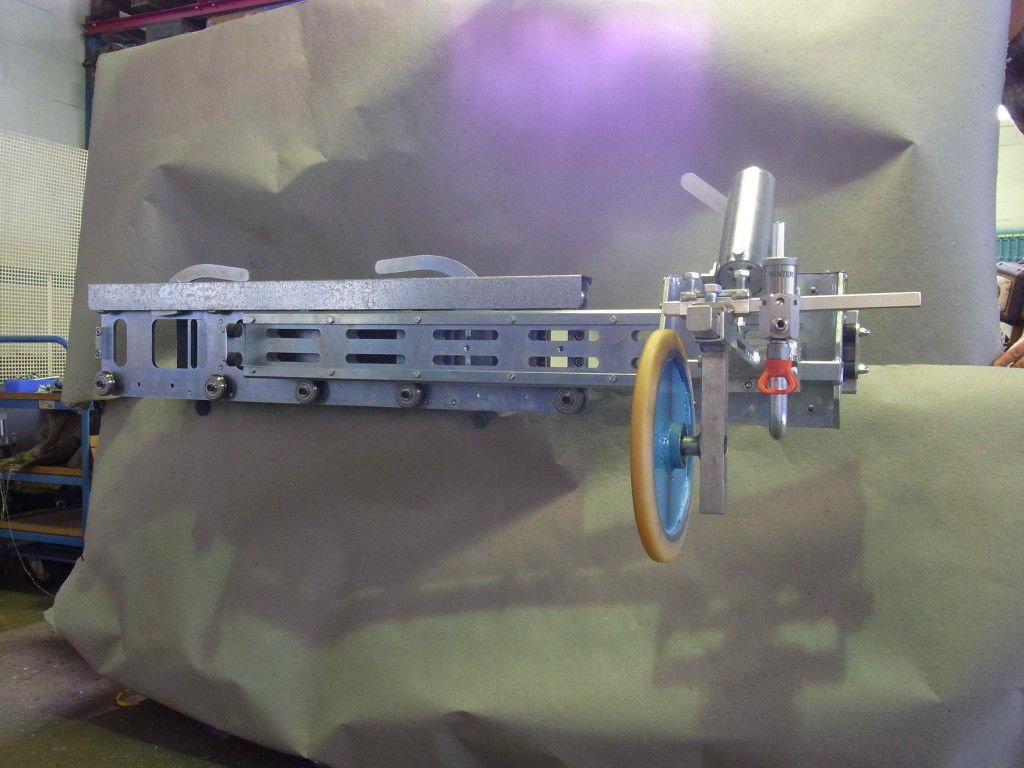

| Marker unit |
on request, two units discless, on request with additional lifting |
| Additional equipment |
on request, hand held spray gun with hose roller |
| Glass bead equipment |
on request, metering bead dispenser up to 300 mm |
| Empty- / total weight |
approx. 3500 kg / 5500 kg |
| Dimensions Length x width x height |
approx. 5,50 m x 1,20 m x 2,60 m (without equipment) |
Technical modifications and errors excepted,
illustrations similar resp. partly including special accessories.
|
State of art: 01.11.2014_e
|
