WP 252 light Airless

Machine type

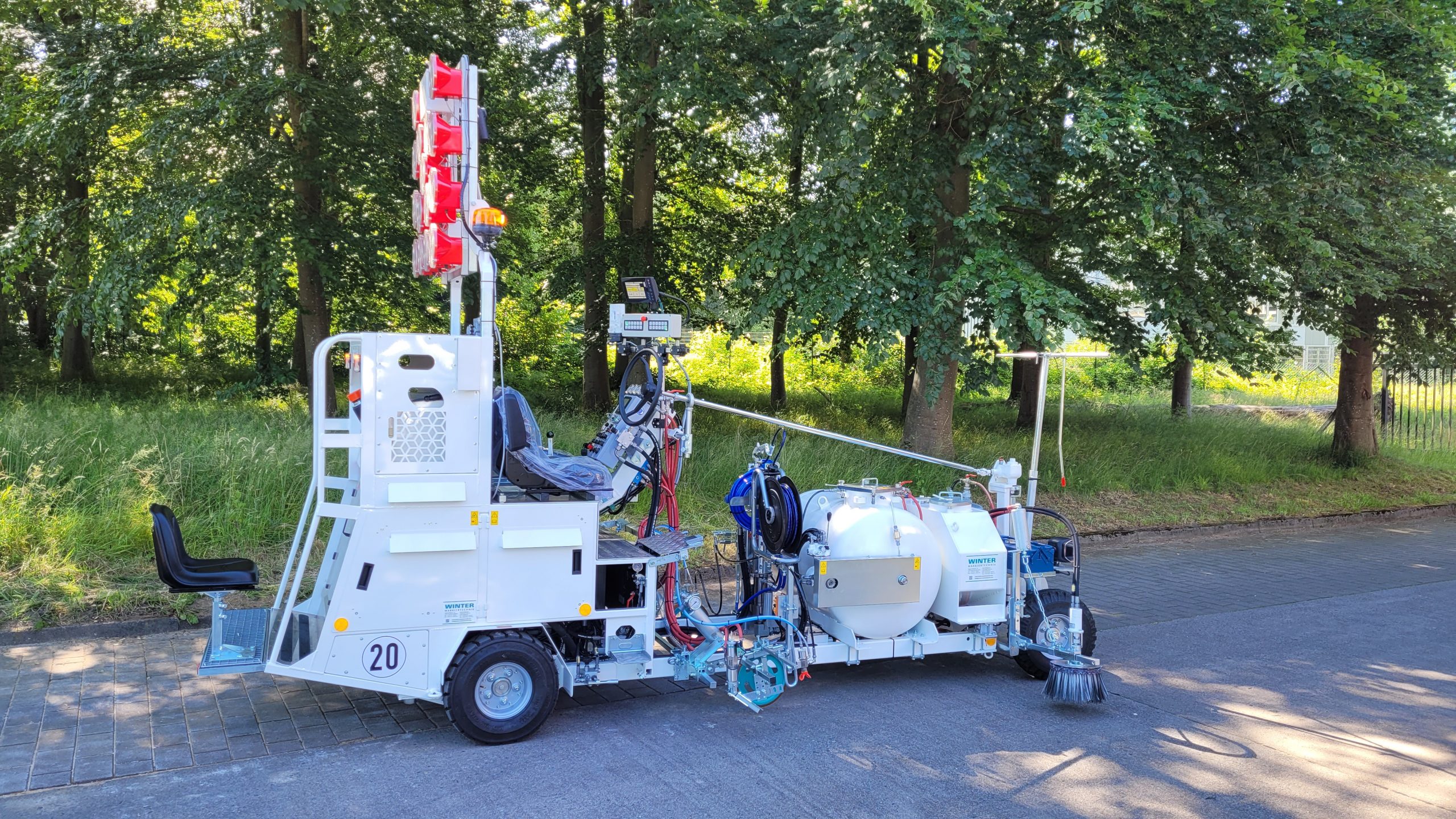

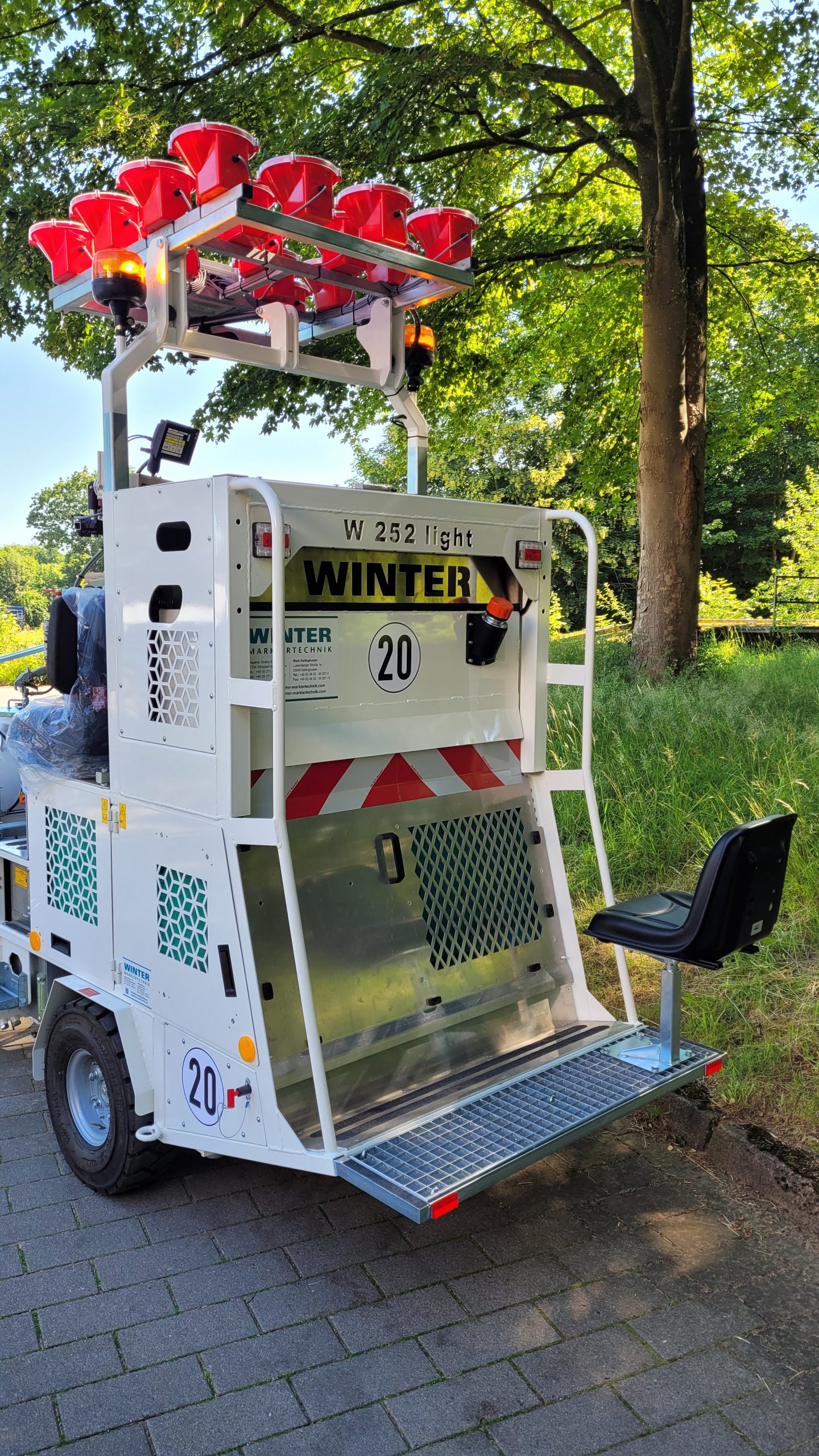

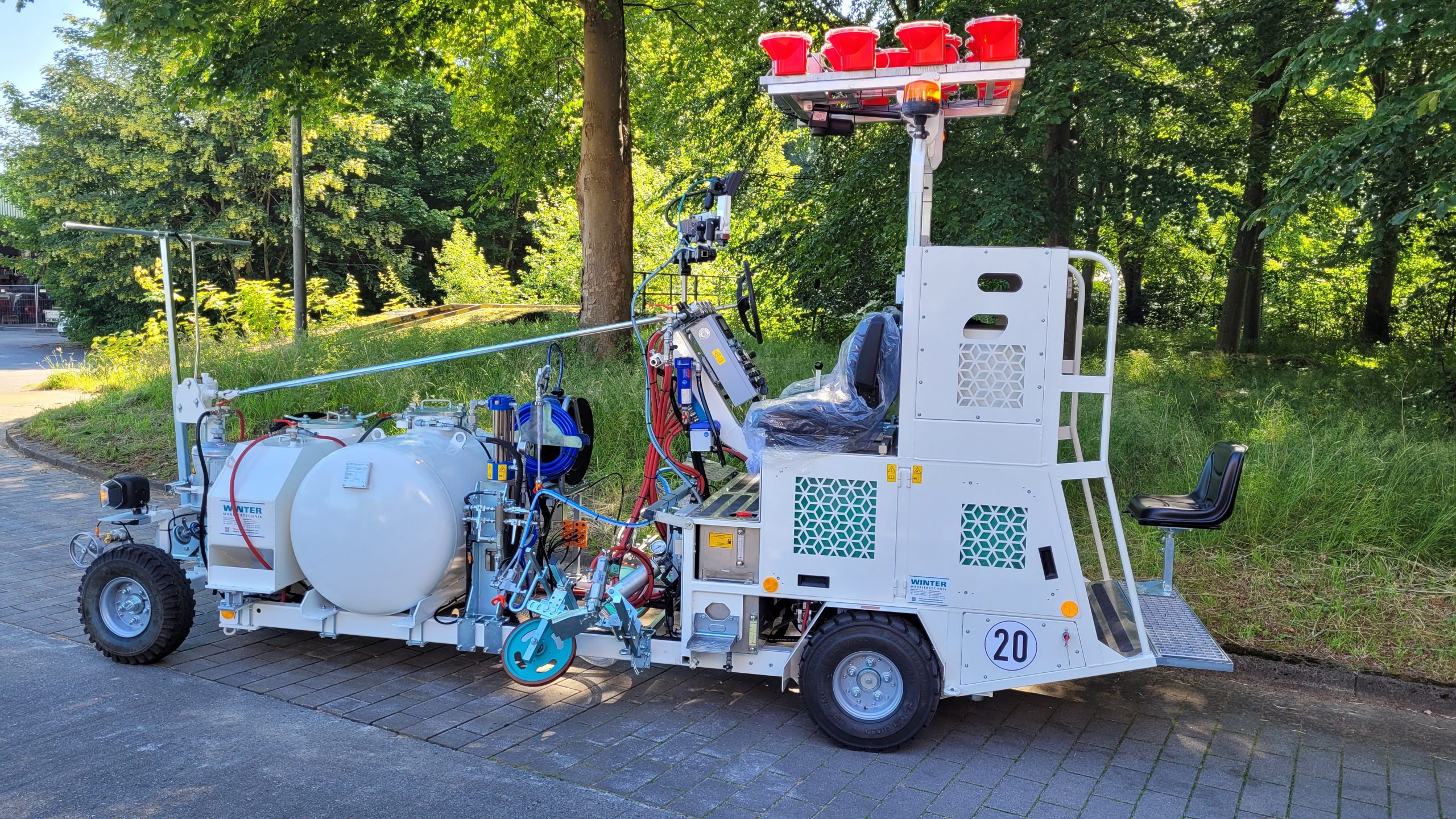

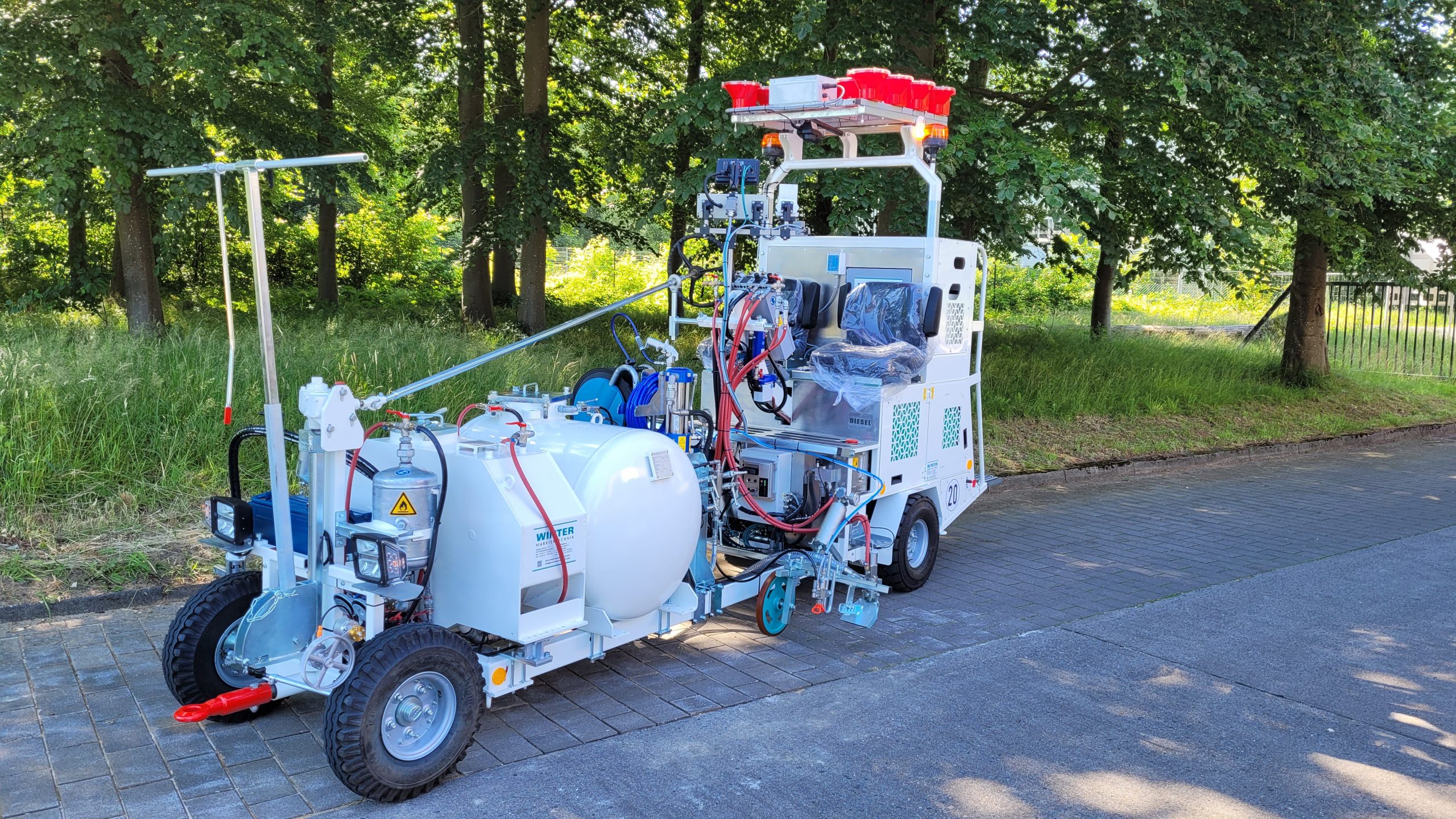

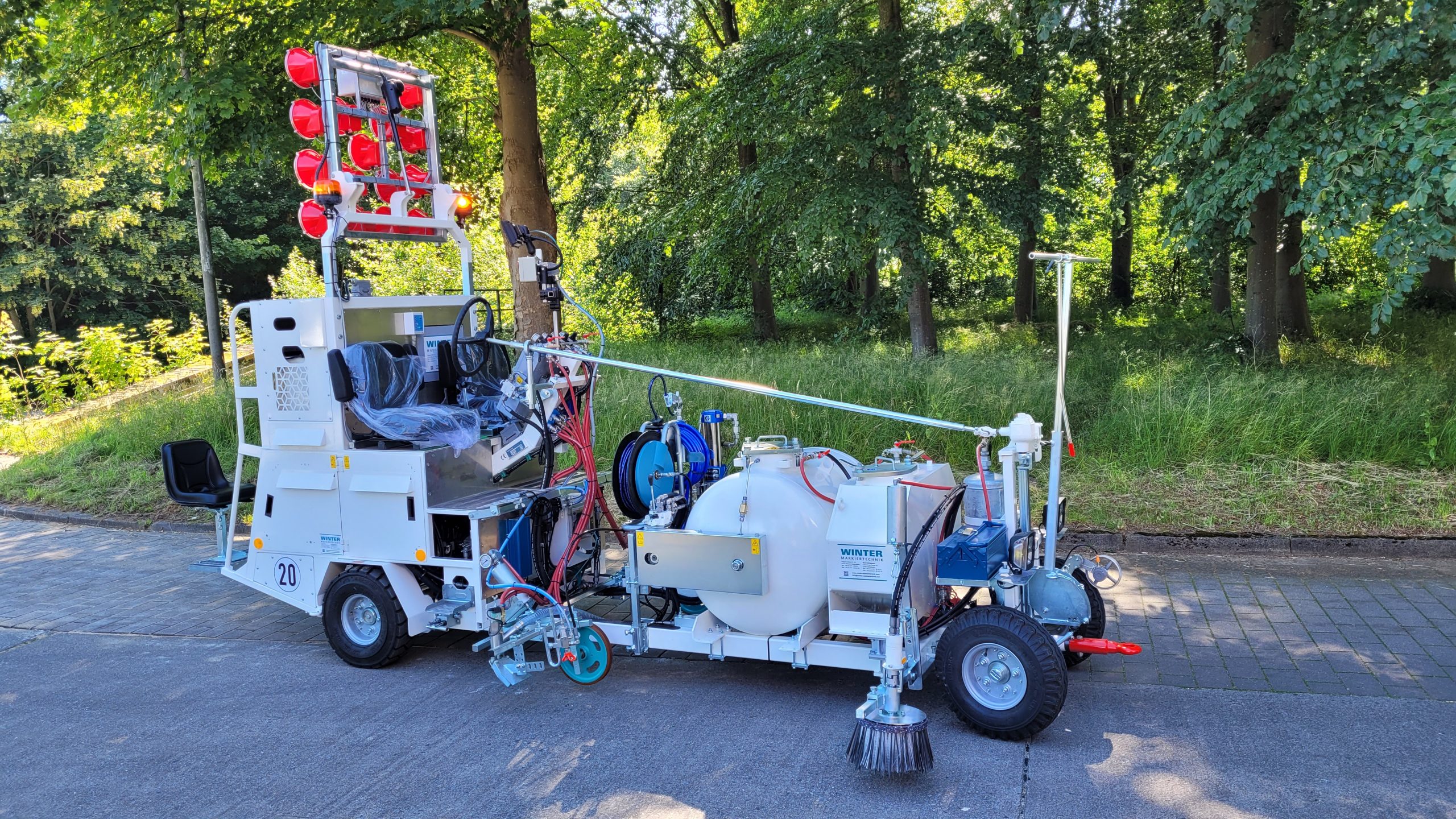

Road marking machine WP 252 light Airless

Engine

Kubota turbo diesel engine type D1803-CR-TE5, EU STAGE V,  50  PS (37 kW at 2700 rpm)

Fuel

Diesel, approx. 47 liters

Electrical system

12 V

Steering

Mechanical via worm roller steering (standard)

Drive / brake system

hydrostatic, hydrostat simultaneously service brake,

Hydraulically actuated multi-disc brake as parking brake

Wheels

front: 6.00-9 12PR, 5 hole-rim / rear: 6.00-9 12PR, 5 hole-rim

Compressor

Screw compressor type EVO 2, mechanically driven via poly V-belt,

Delivery rate 1,000 l/min

Operating air pressure

7 bar, silenced safety valve

Ink pressure container

approx. 250 liters, with agitator - other container sizes on request

Paint pump

Airless pump type Graco, delivery rate approx. 15 l/min

Glass bead tank

approx. 125 liters (standard)

Marker unit

with an airless gun (standard), unpressurized

Glass bead equipment

Optional bead gun or path-dependent bead spreader up to 30 cm

Empty/total weight

approx. 1,800 - 2,500 kg (varies depending on equipment)

Dimensions, LxWxH (without equipment)

approx. 4.75 m x 1.23 m x 2.1 m (varies depending on equipment)
