| Machine type |

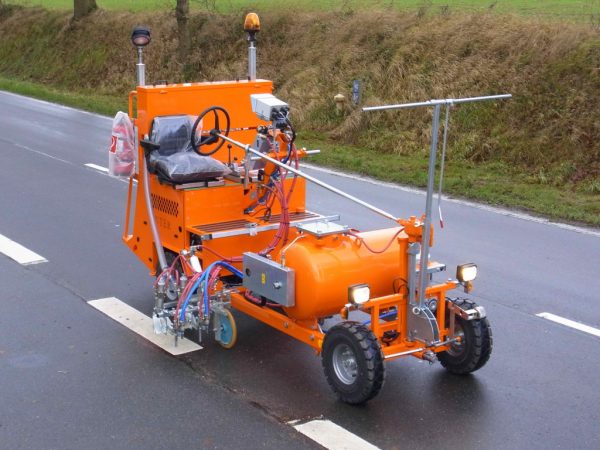

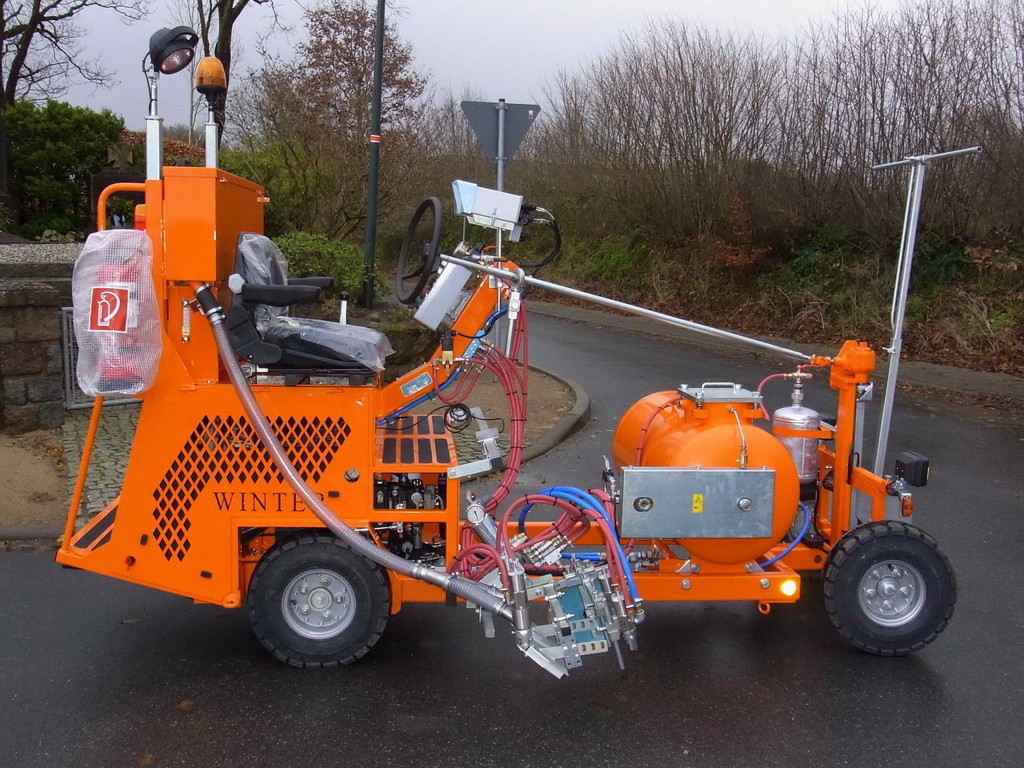

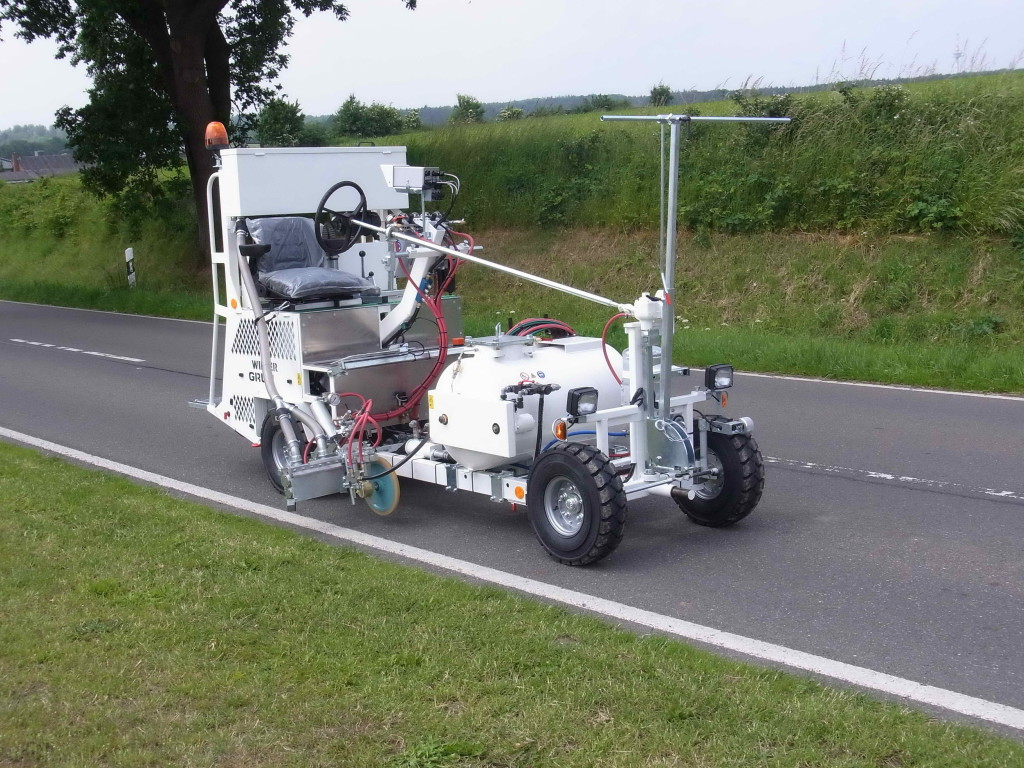

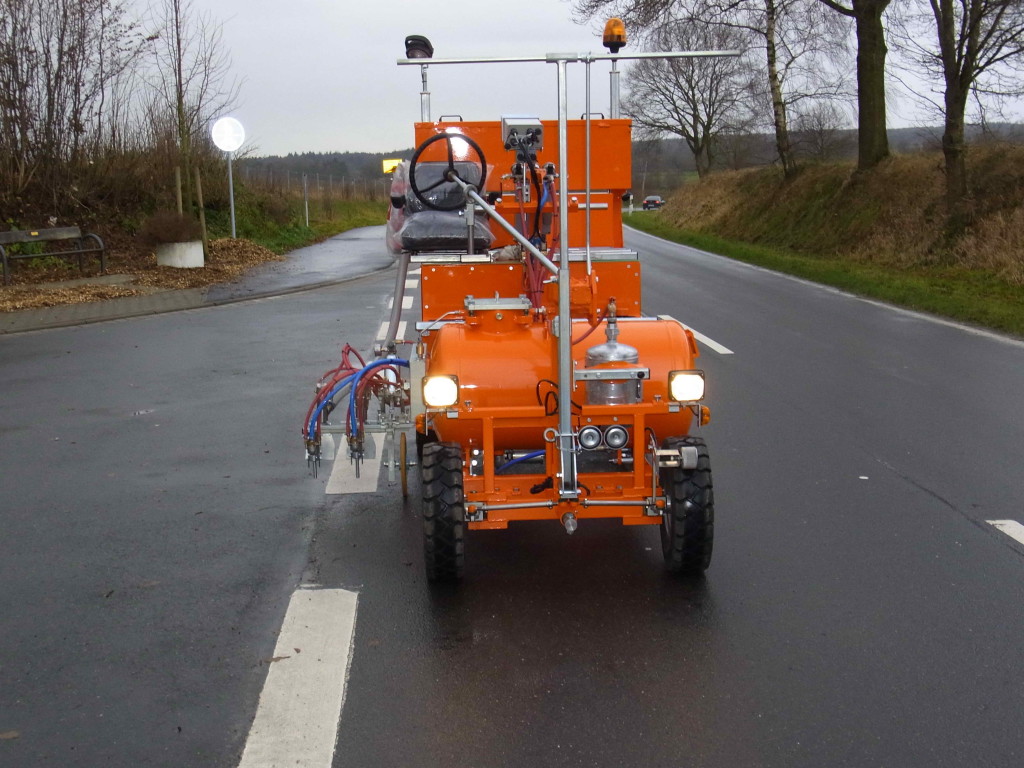

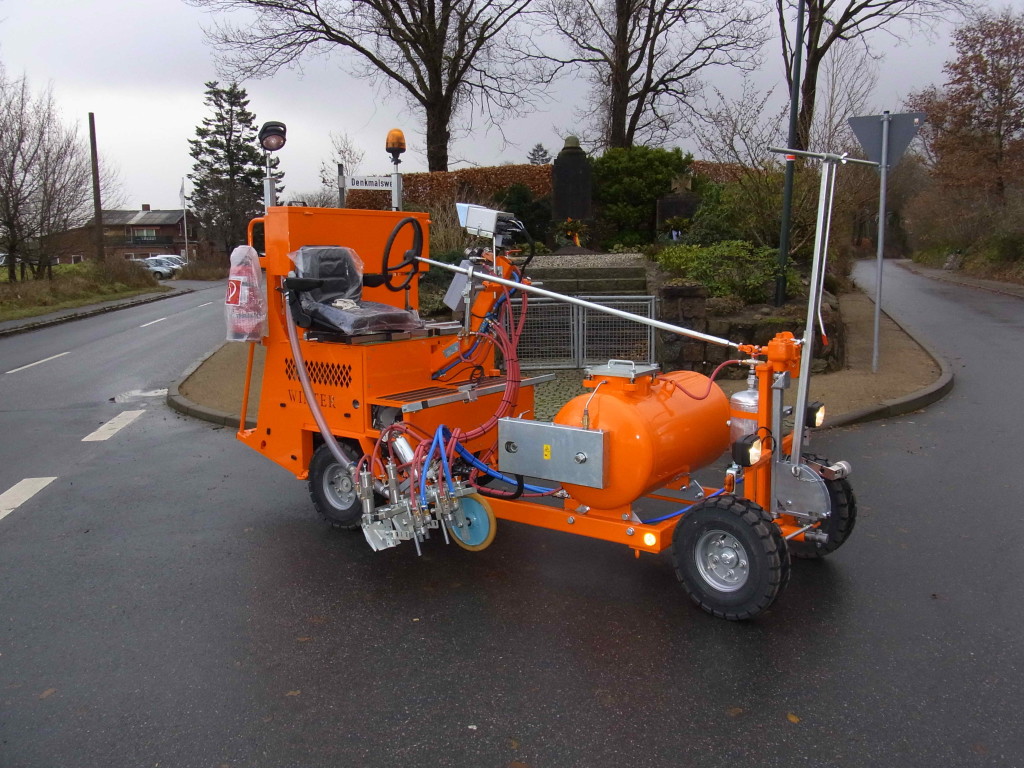

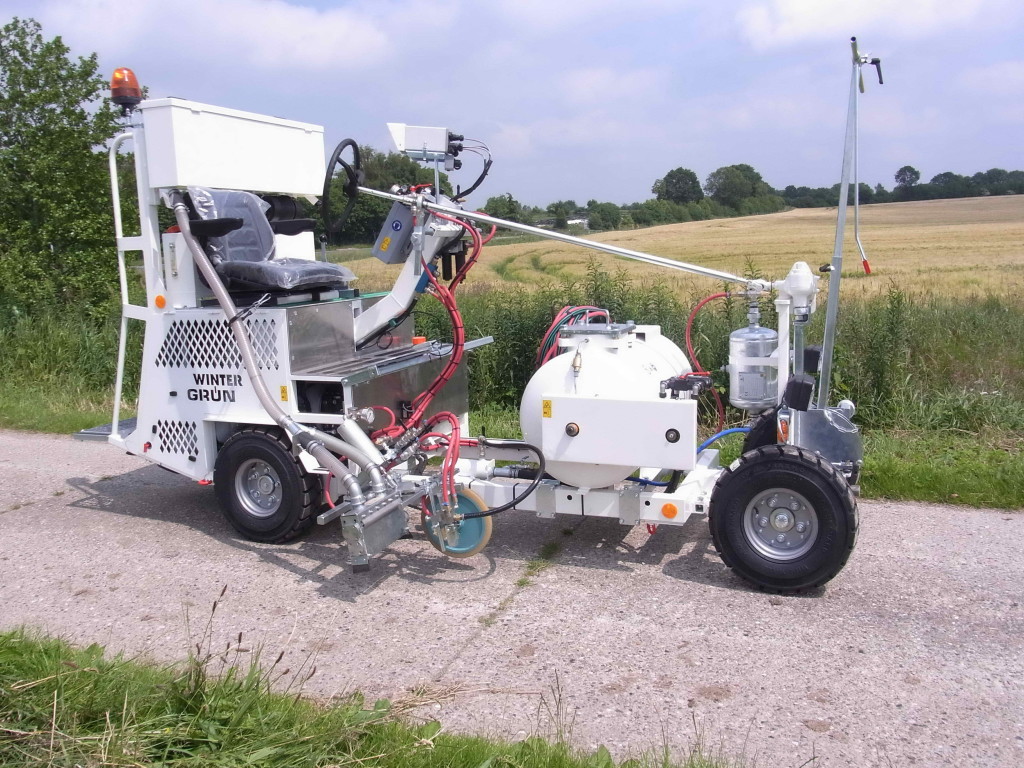

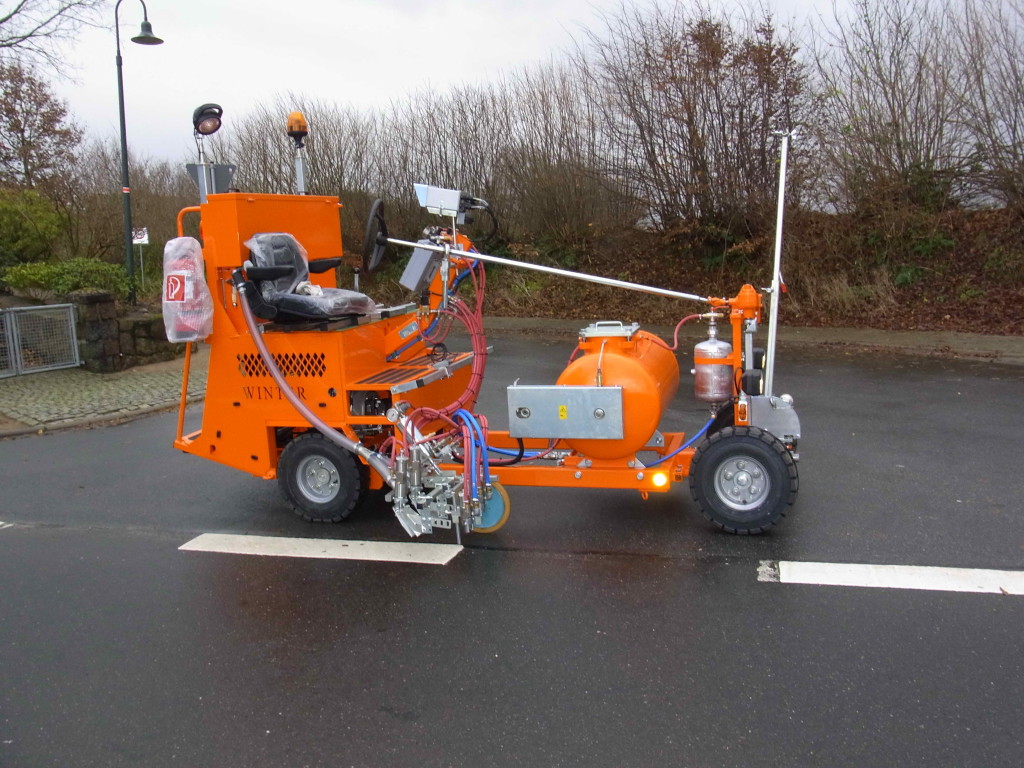

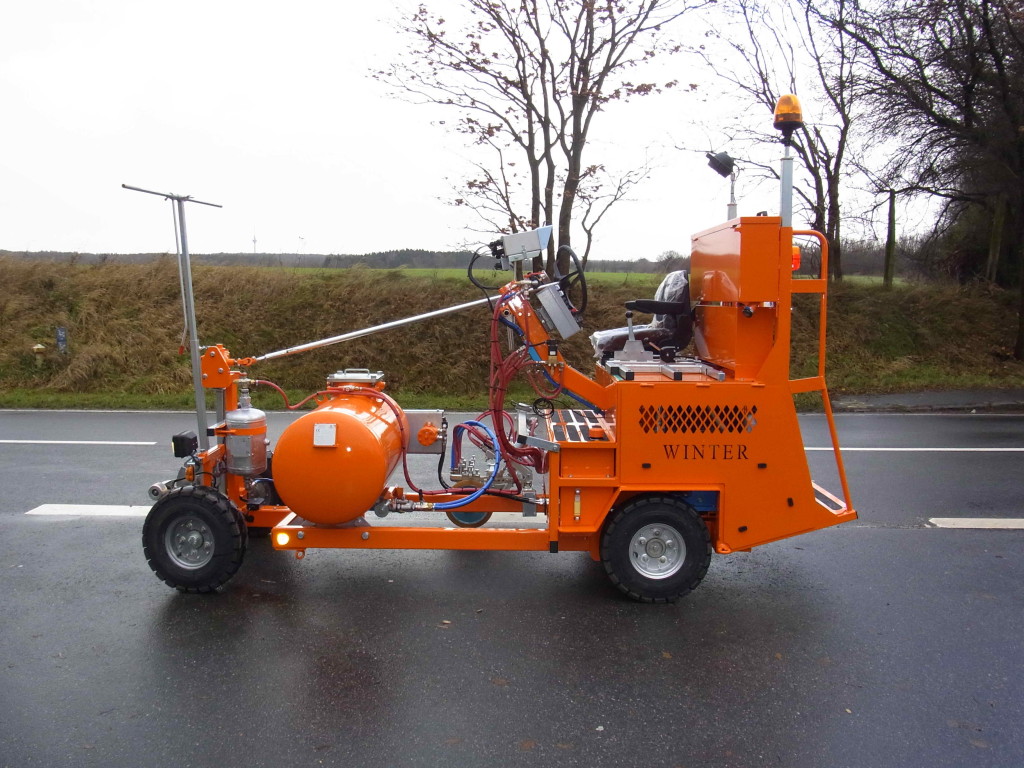

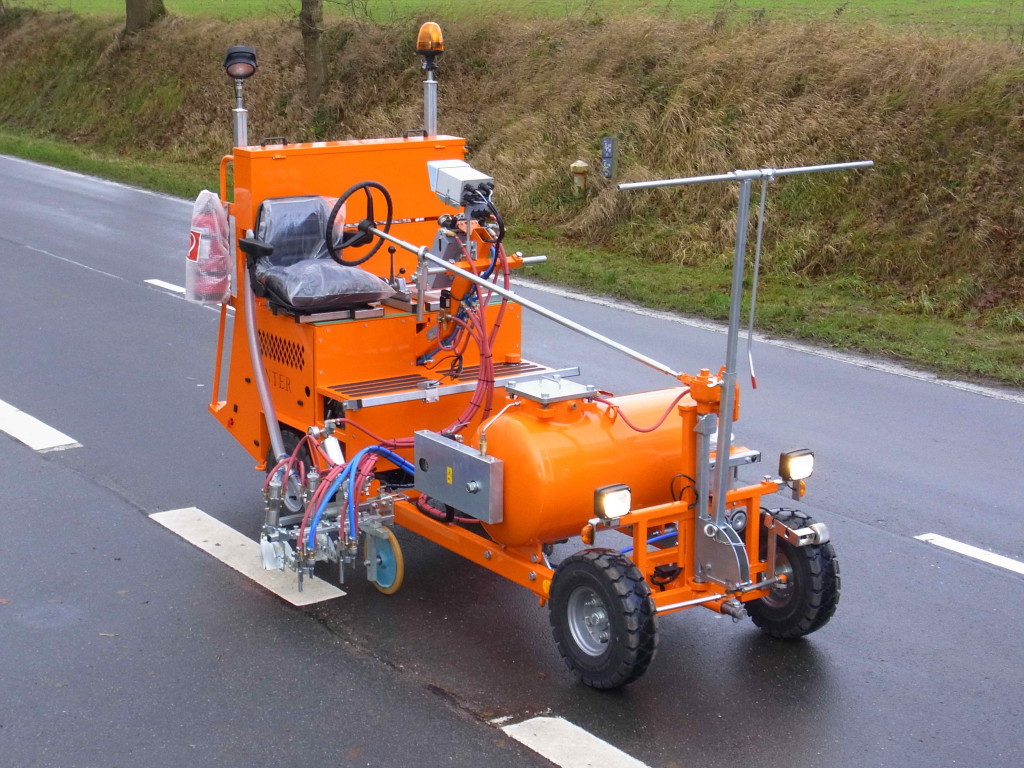

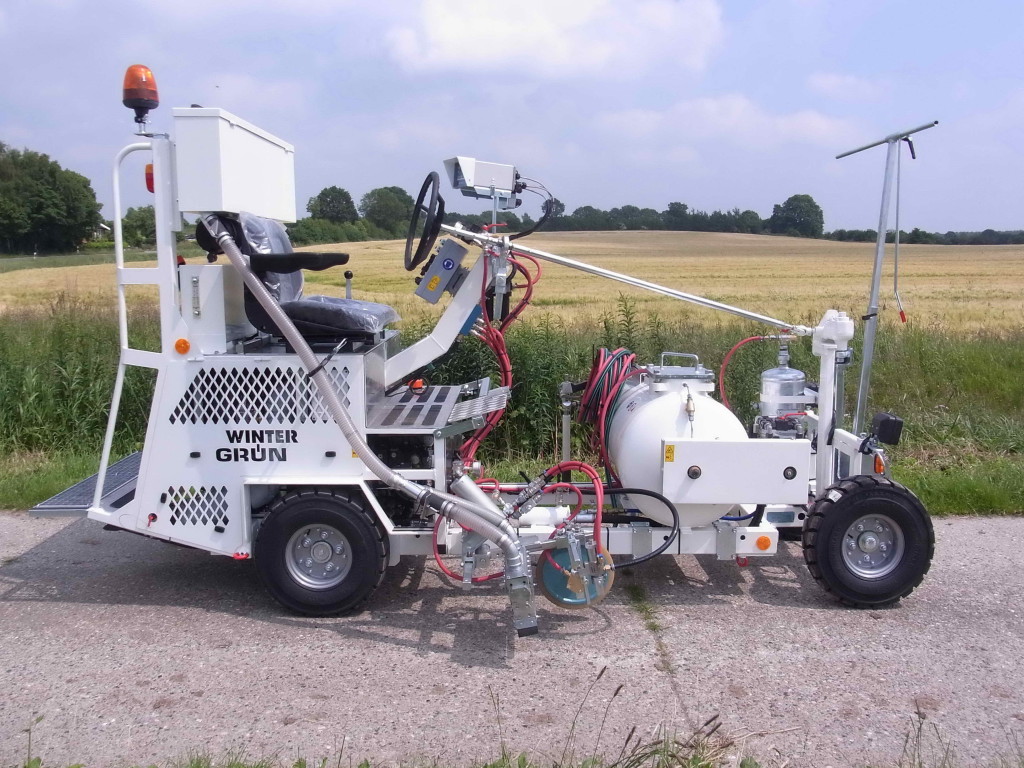

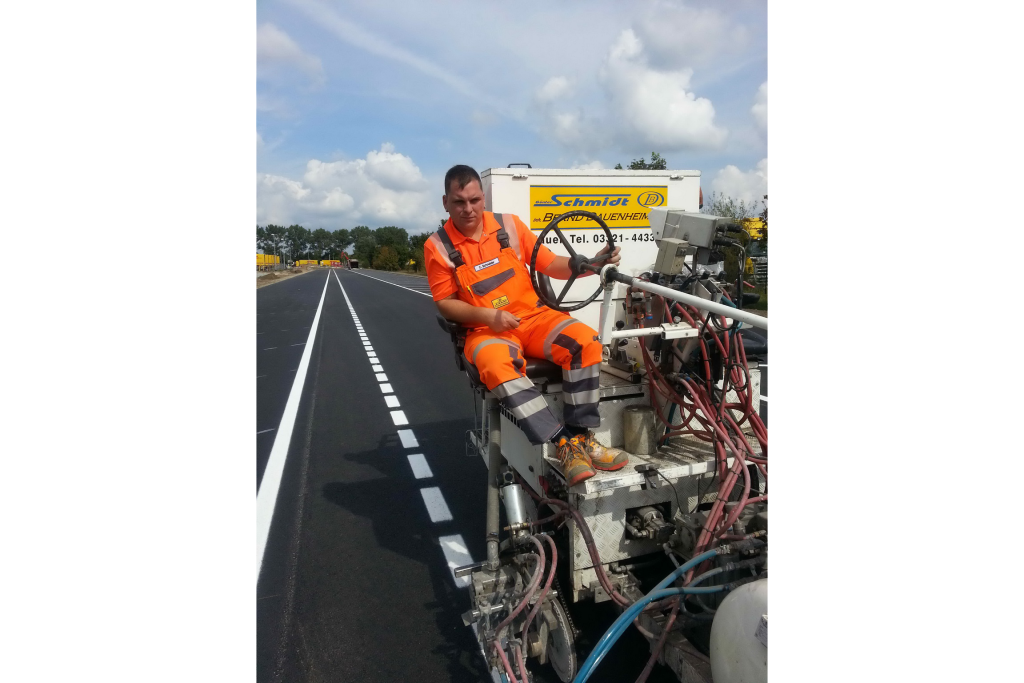

Road marking machine WP 251 light Airspray |
| Engine |
Kubota D1803, 30 PS (22 kW) |
| Fuel |
diesel, capacity 34 liter |
| Electrical system |
12 V, battery 66 Ah |
| Steering |
strong standard mechanical steering |
| Drive / brake system |
hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake |
| Wheels |
front: 6.00-9 12PR, 5 hole-rim / rear: 6.00-9 12PR, 5 hole-rim |
| Compressor |
2-cylinder Boge compressor Typ SK 26, effective air supply 1060 l/min, mechanically driven by poly-v-belt |
| Operating air pressure |
7 bar, silenced safety valve |
| Paint pressure tank |
250 ltr., with agitator, other container capacities on request |

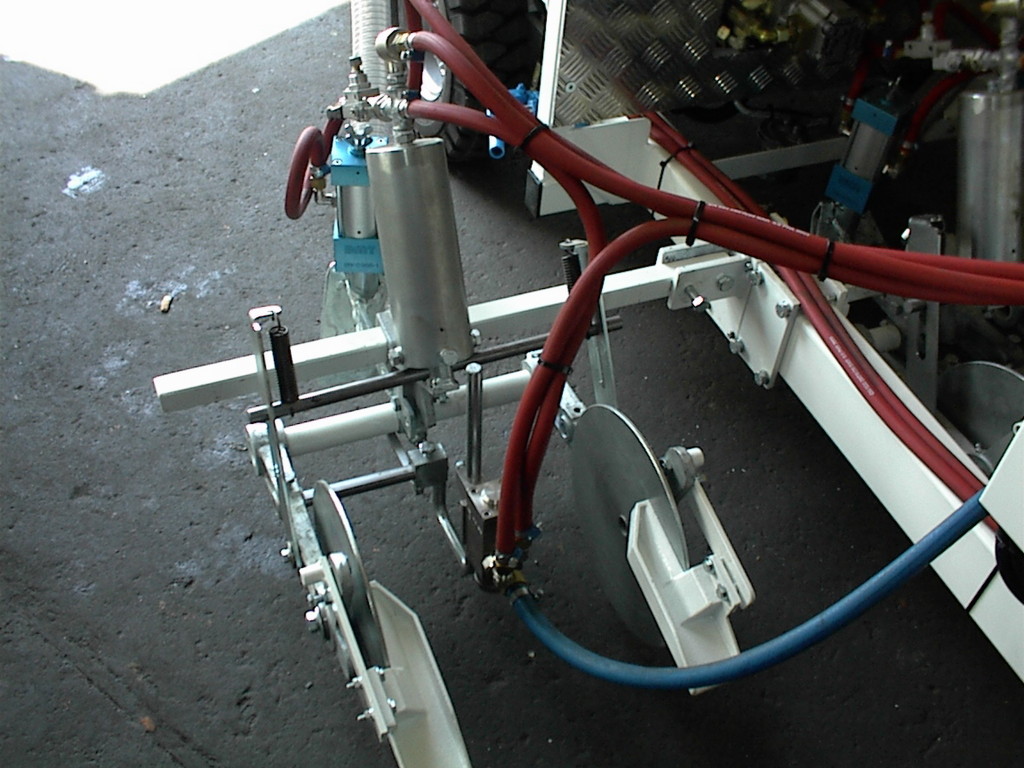

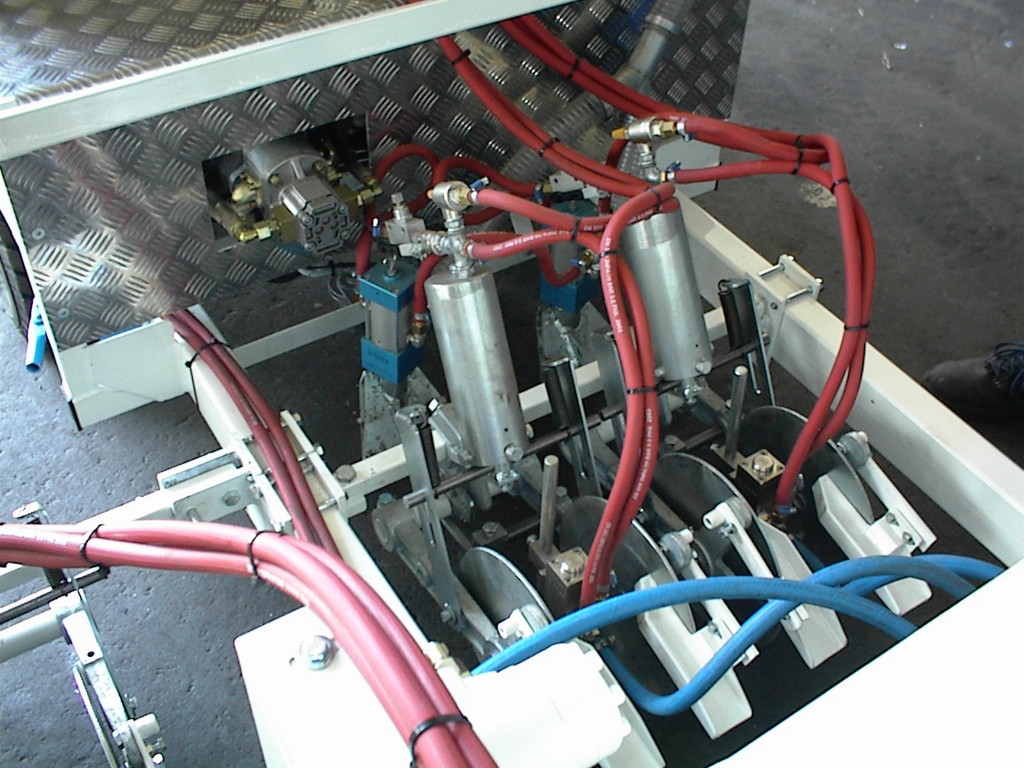

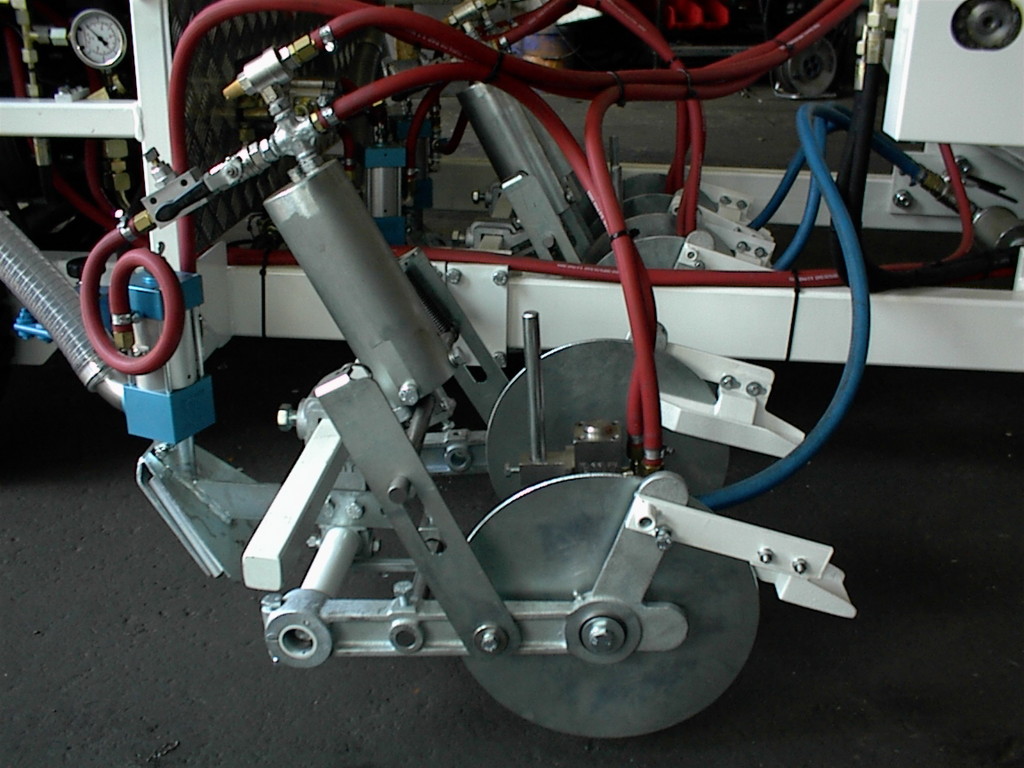

| Marker unit |
on request, two units discless |
| Additional equipment |
on request, hand held spray gun |

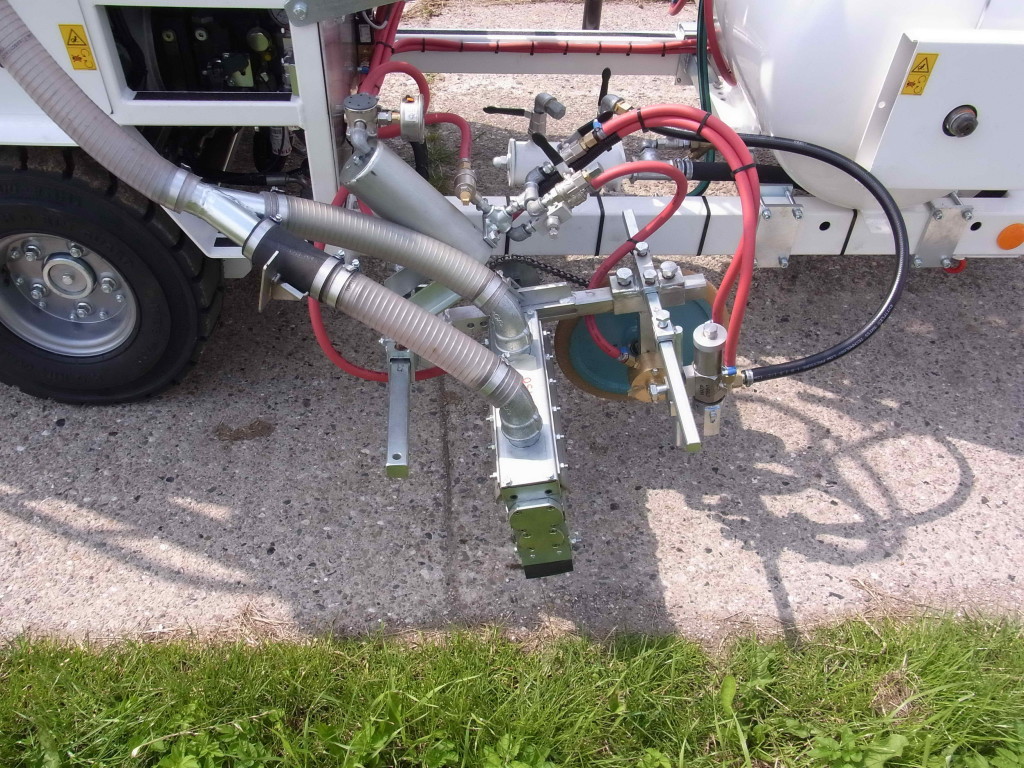

| Glass bead equipment |
on request, metering bead dispenser up to 300 mm |
| Empty- / total weight |
approx. 1200 kg / 2300 kg |
| Dimensions Length x width x height |
approx. 3,90 m x 1,25 m x 1,85 m (without equipment) |
Technical modifications and errors excepted,
illustrations similar resp. partly including special accessories.
|
State of art: 01.05.2019_en
|
