| Machine type |

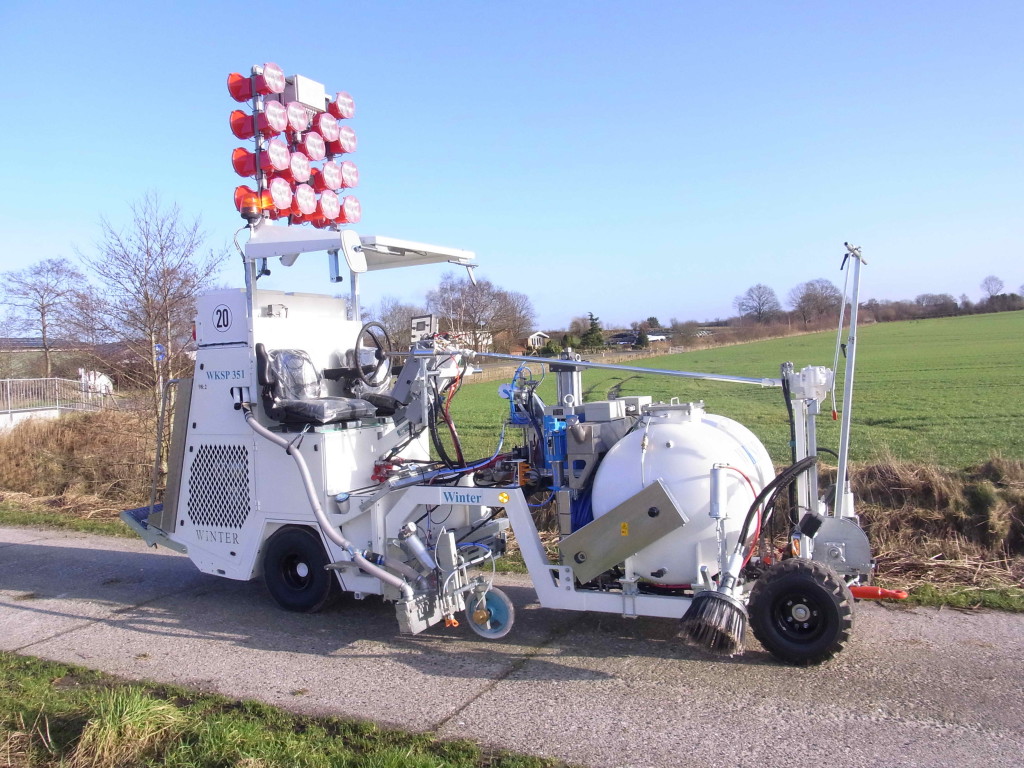

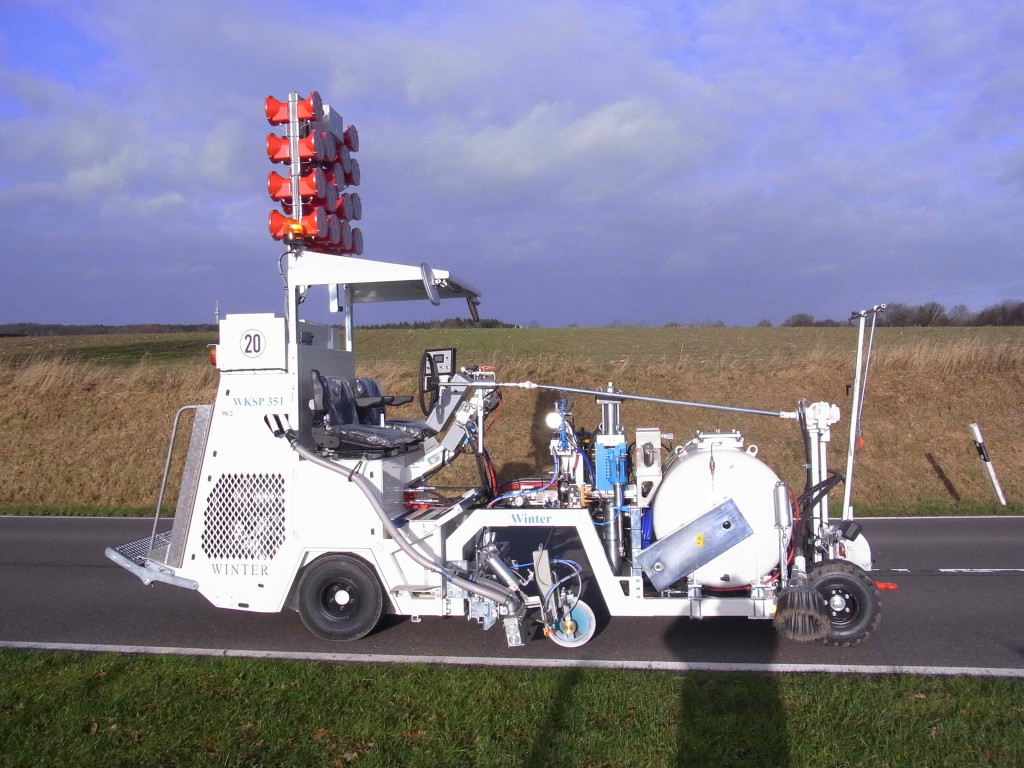

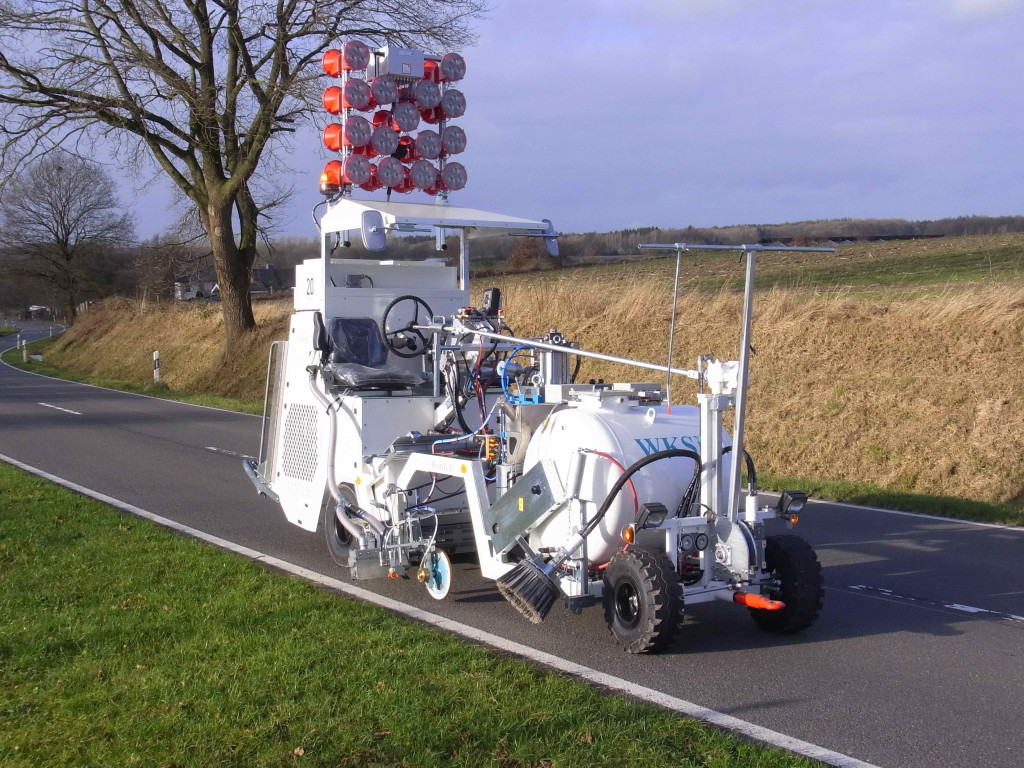

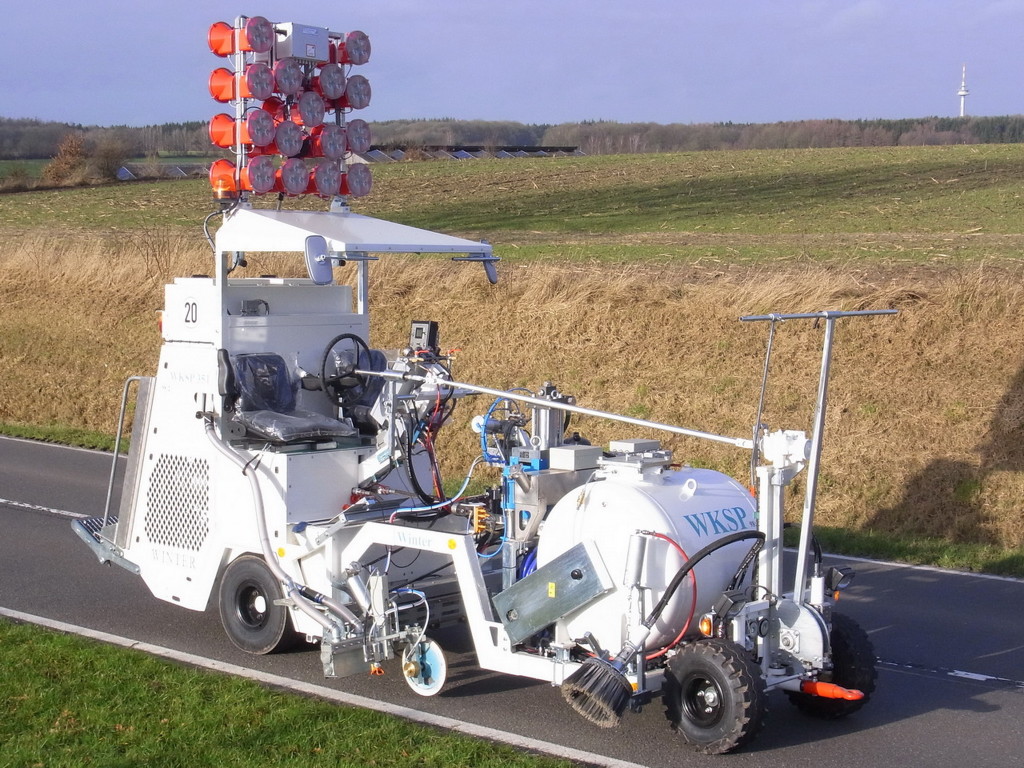

Road marking machine WKSP 351 (98:2) GTLR |
| Engine |
Perkins 404F-E22TA, 58,5 HP (43 kW), at 2400 r/min |
| Fuel |
diesel, capacity 50 liter |
| Electrical system |
12 V, battery 88 Ah |
| Steering |
strong standard mechanical steering, on request hydraulic assisted steering / hydraulic |
| Drive / brake system |
hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake |
| Wheels |
front: 21×8 – 9, 5 hole-rim / rear: 6.50-10PR, 5 hole-rim |
| Compressor |
Boge screw type compressor, mechanically driven by poly-v-belt, effective air supply 1500 or 2300 l/min |
| Operating air pressure |
7 bar, automatically controlled |
| Paint pressure tank |
540 ltr., with agitator, other container capacities on request |
| Paint pump |
Airless doublepump, 16 ltr/min, mixture ratio 98 : 2 |
| Glass bead pressure tank |
158 ltr. or 2x 105 ltr., with water pre separator, on request filling sieve / filling level monitor |
| Perlbehälter drucklos |
on request, 300 ltr. |
| Marker unit |
units discless |
| Glass bead equipment |
on request, metering bead dispenser up to 300 mm |
| Empty- / total weight |
approx. 2500 kg / 3800 kg |
| Dimensions Length x width x height |
approx. 4,60 m x 1,20 m x 2,52 m (without equipment) |
Technical modifications and errors excepted,
illustrations similar resp. partly including special accessories.
|
State of art: 07.10.2016_en
|
