Description

Machine type Road drier GST
Engine Honda-GX 160, 4,8 PS (3,6 kW)
Fuel gasoline, 3,6 litres
Brake system lever controlled parking brake
Wheels front: steel wheel d=200 mm / rear: solid rubber tyre d=200 mm
Air supply fan with 27000 l/min., driven by teeth belt
Operating gas pressure propane gas at 1,5 bar
Gas bottle 11 kg or 33 kg

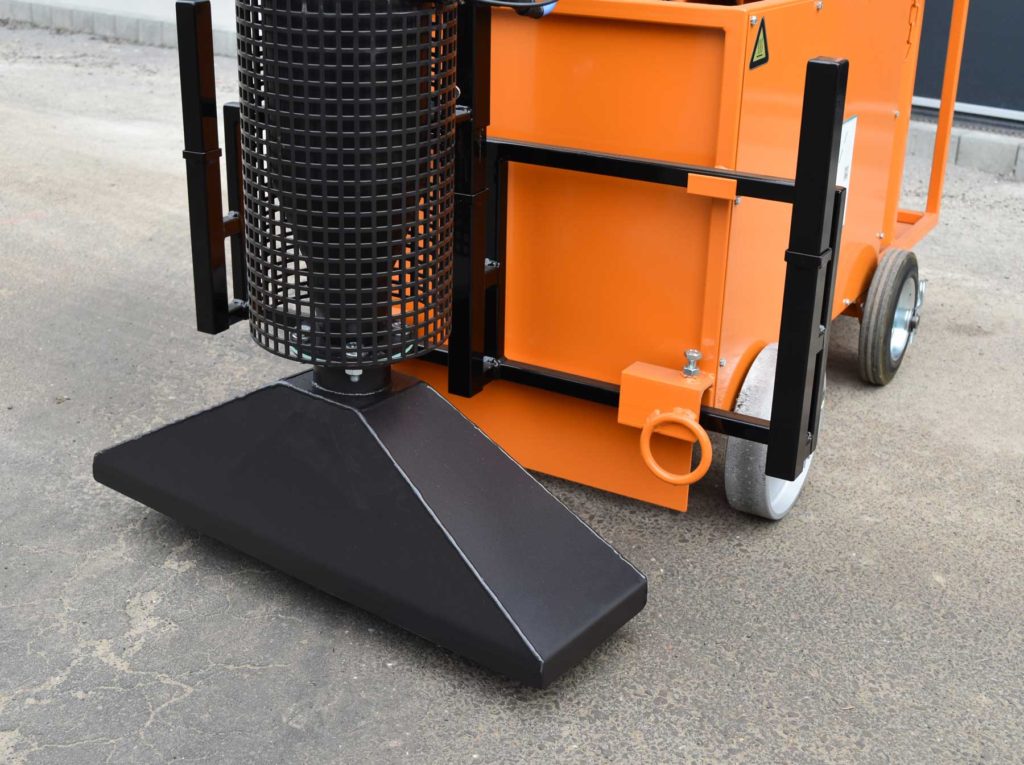

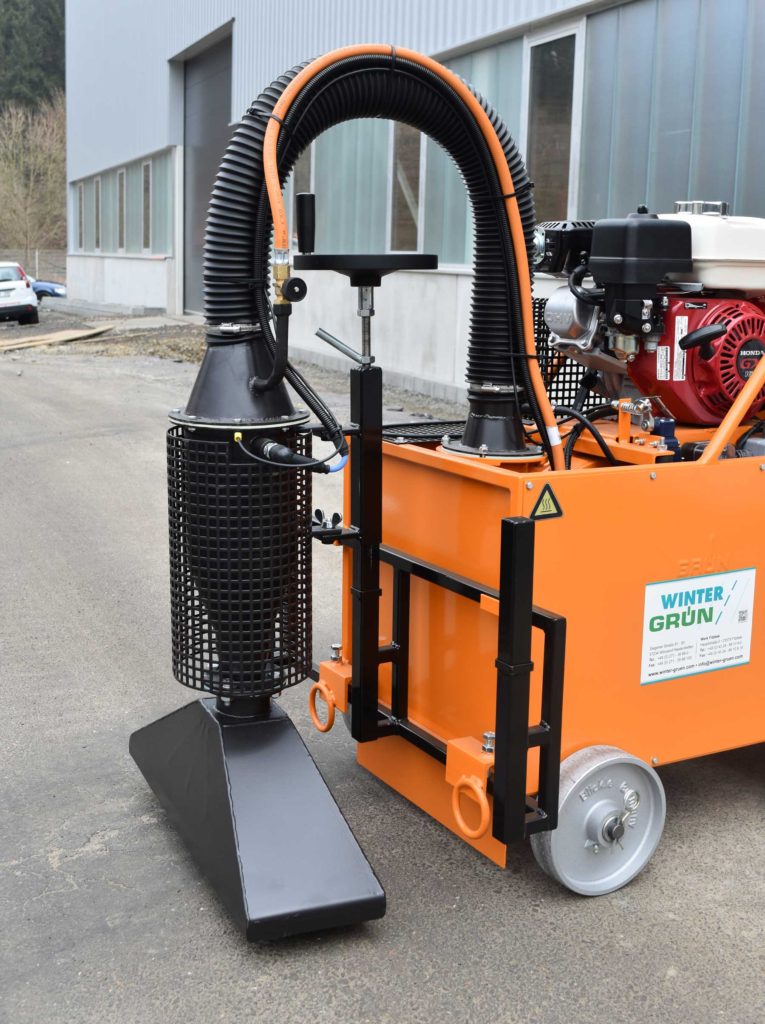

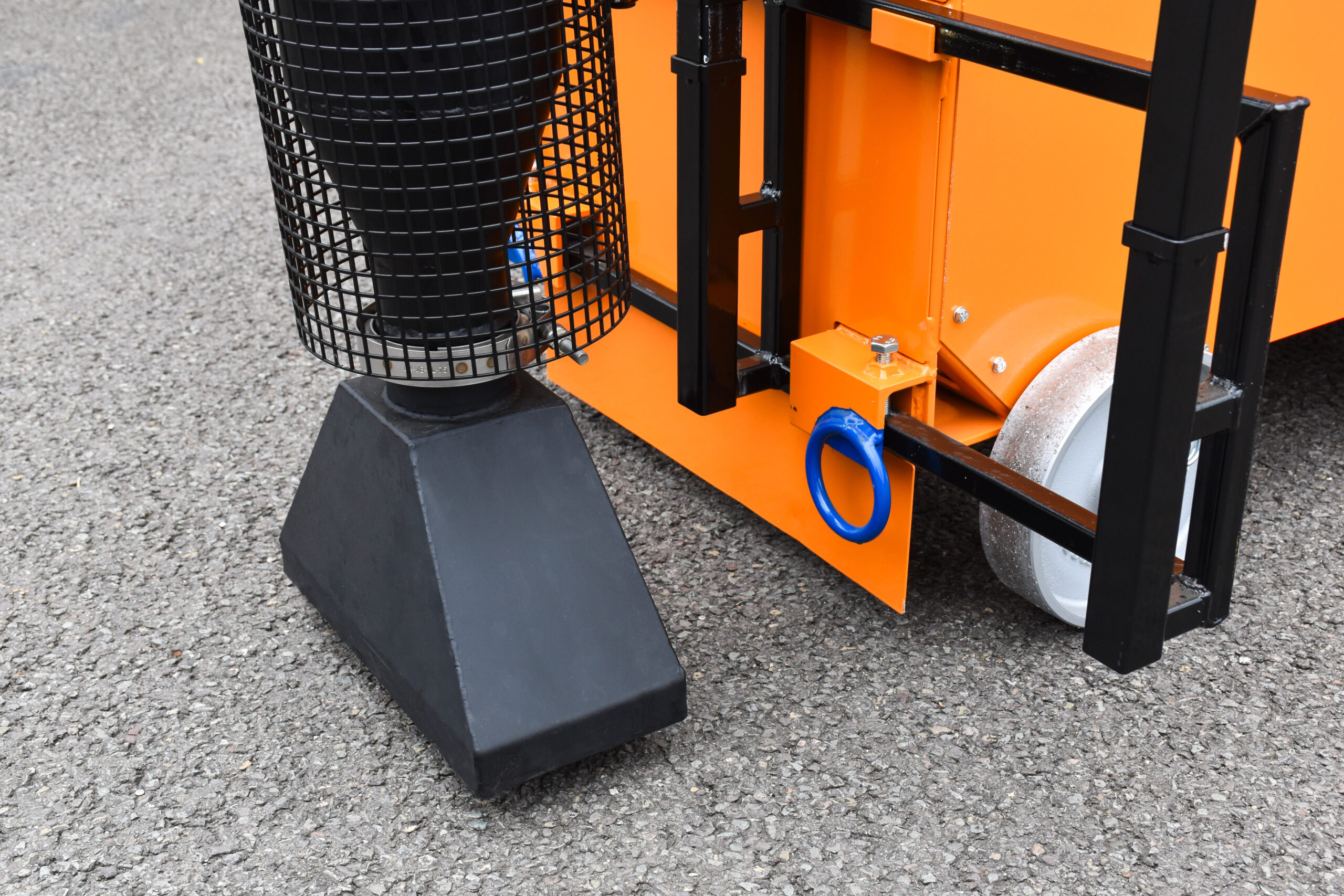

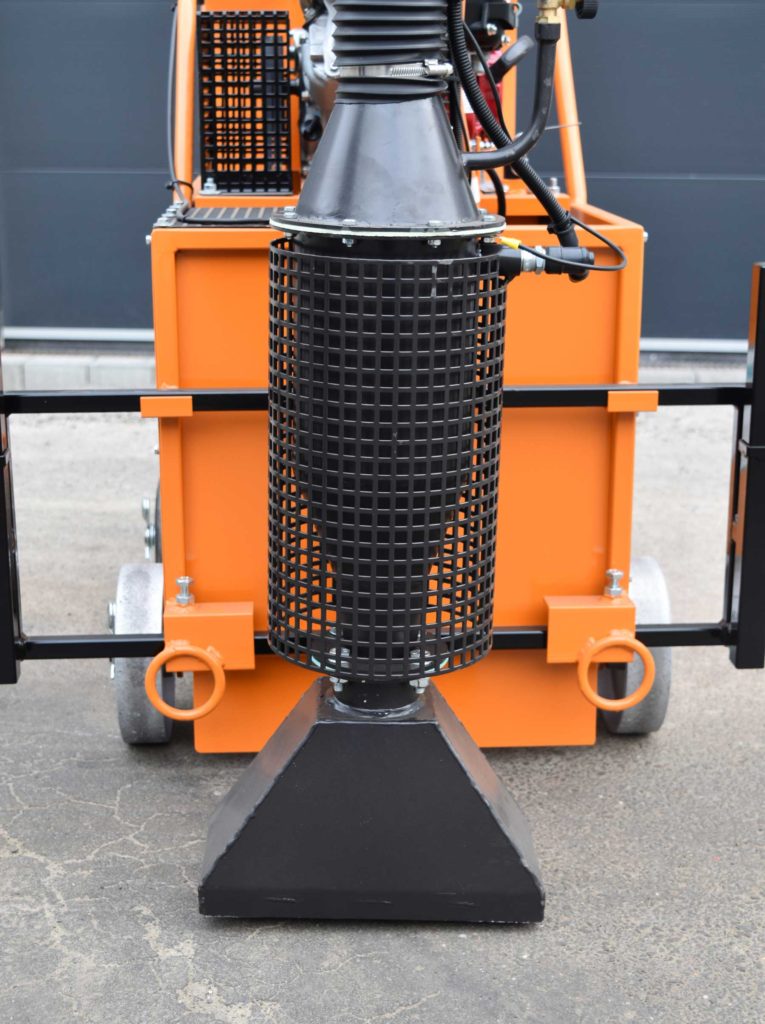

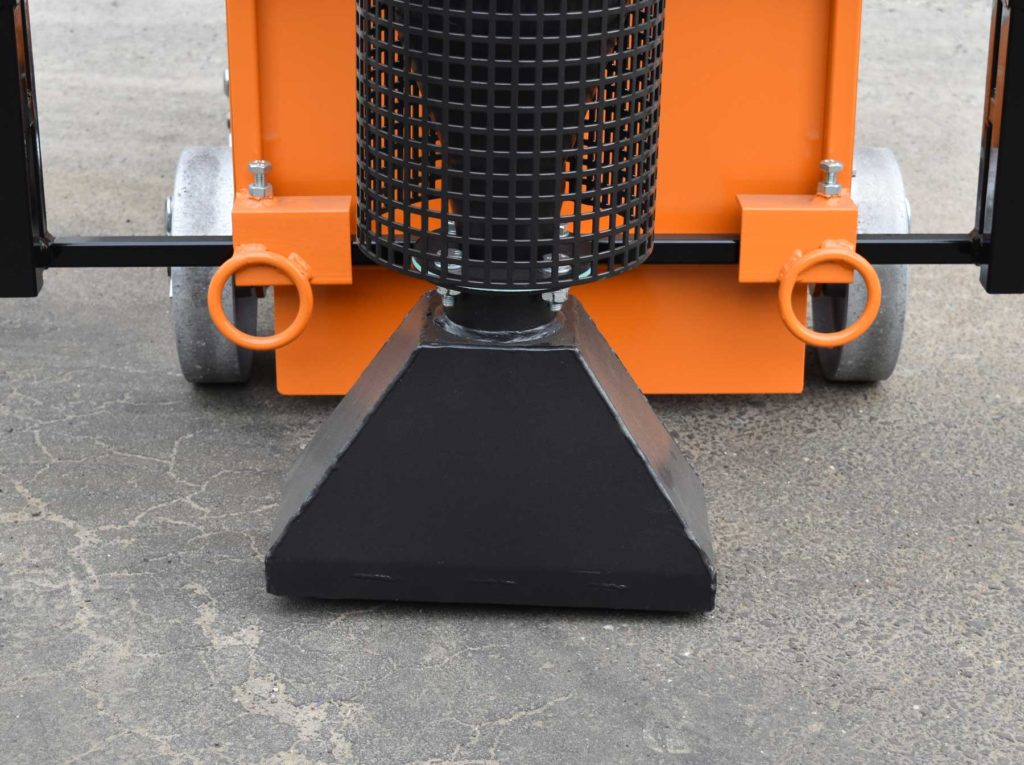

Attachment elements electronic ignition control with automatic cut off, air pressure control device, drying head adjustable in height and side position, drying head made of stainless steel with special constructed outlets

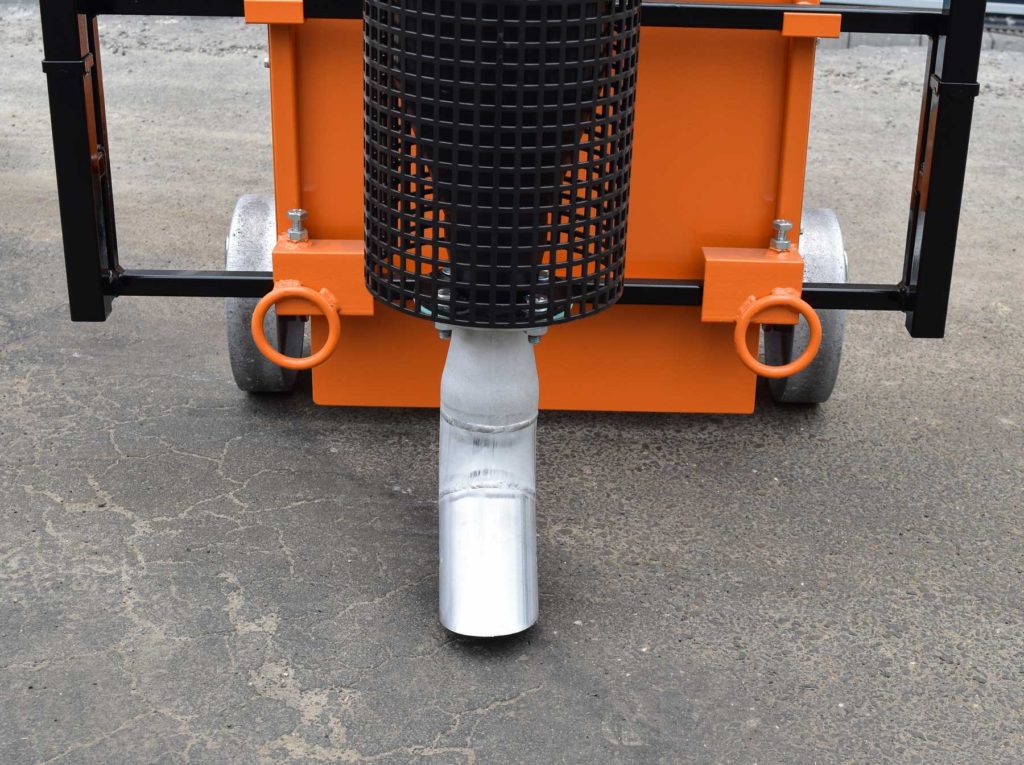

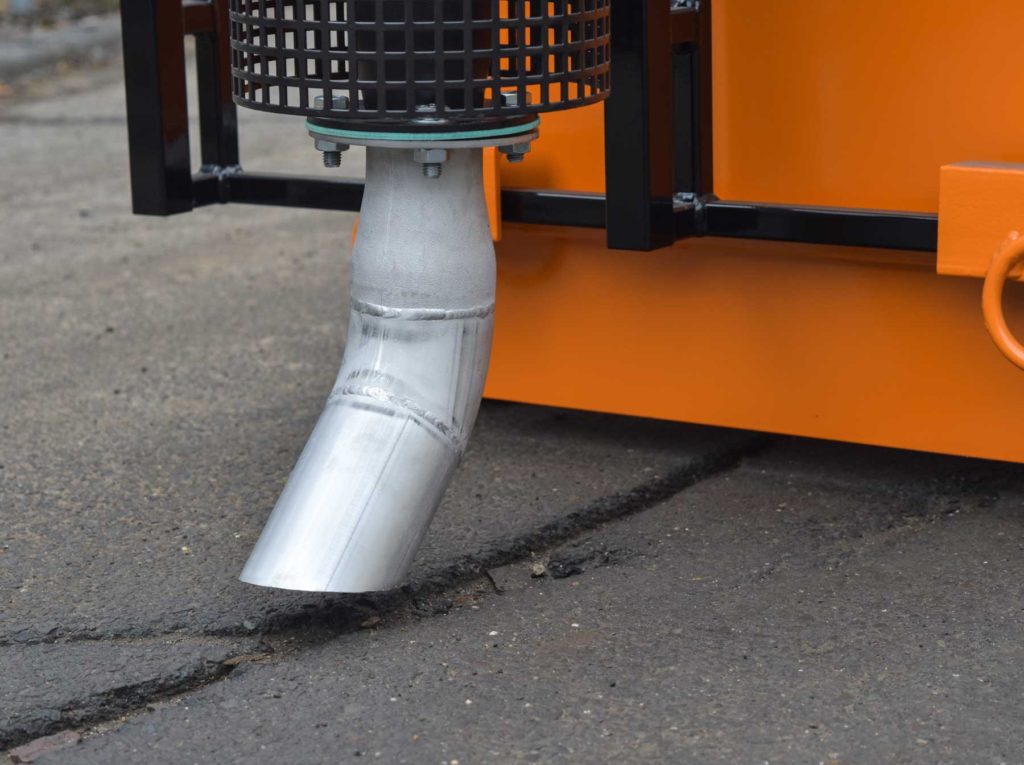

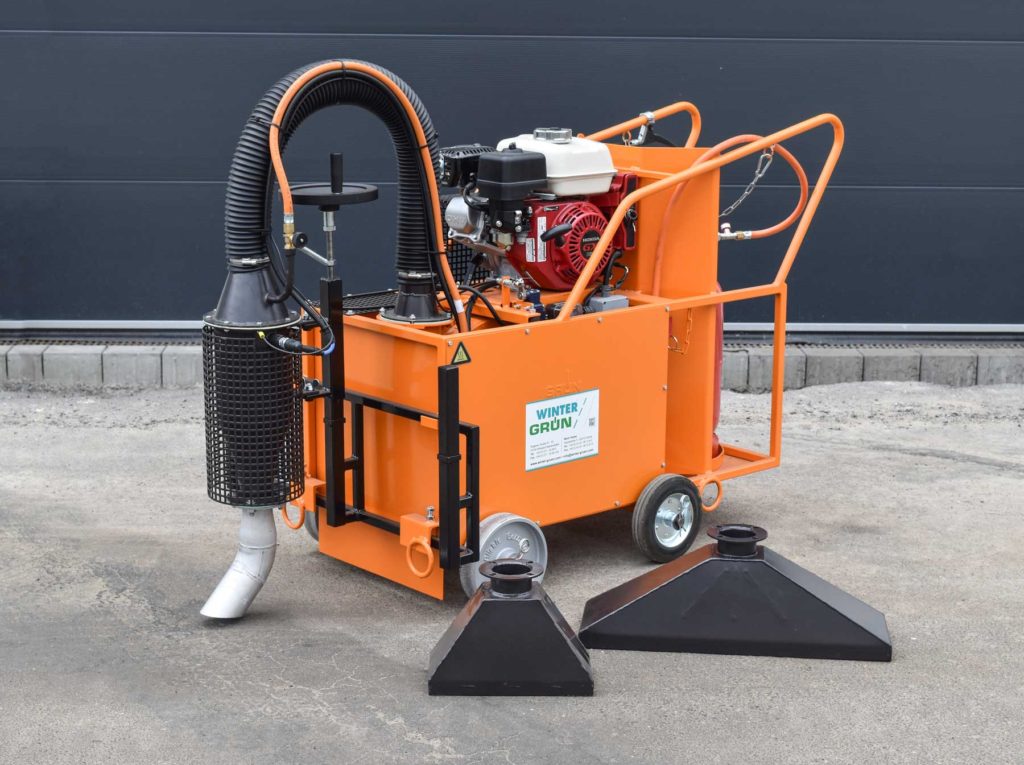

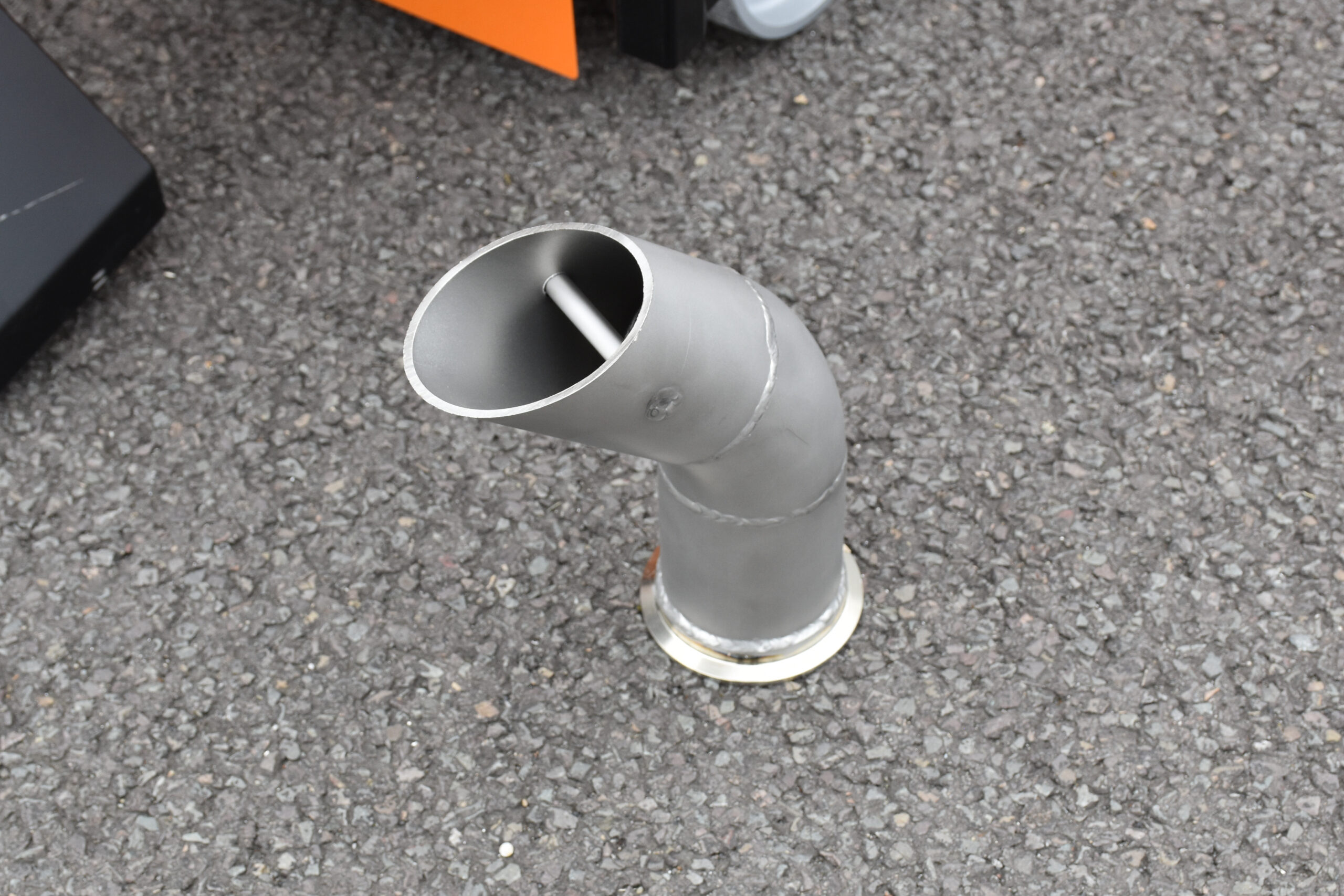

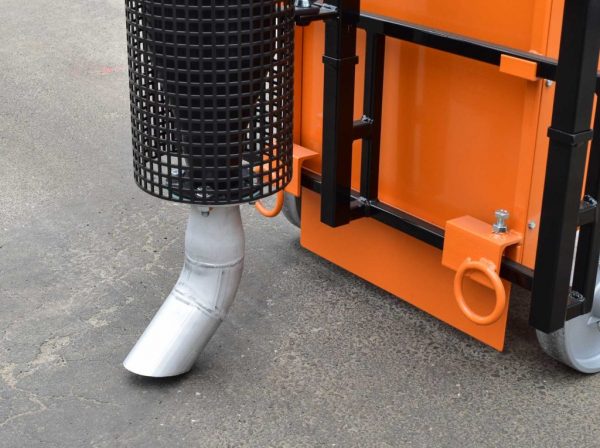

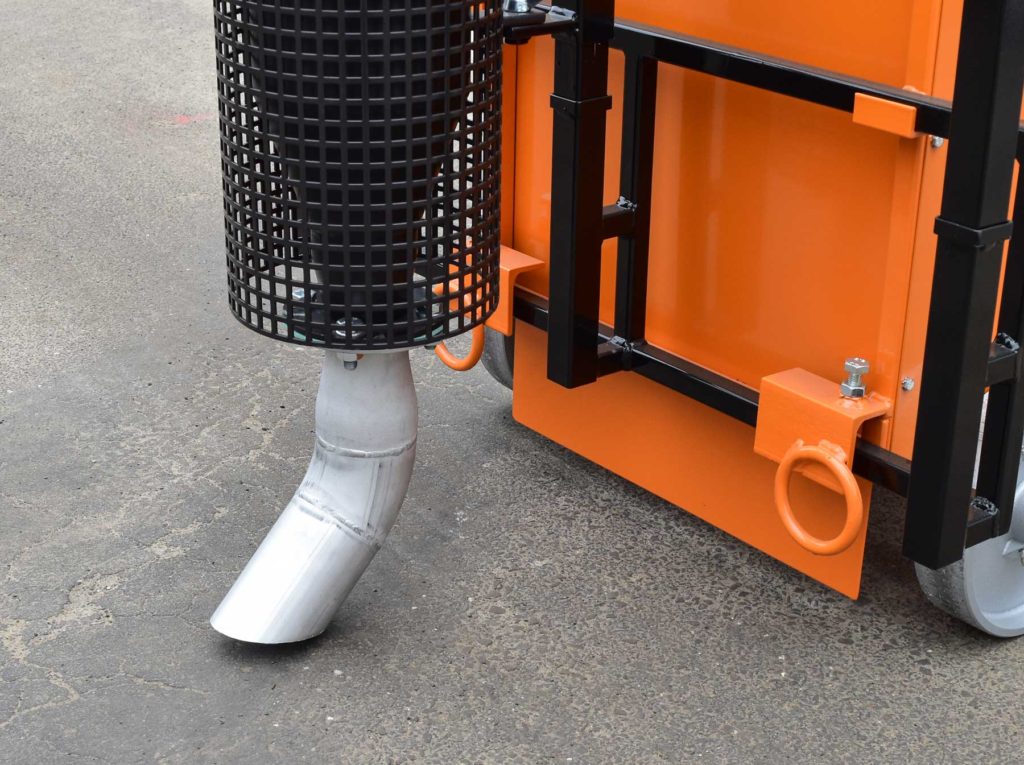

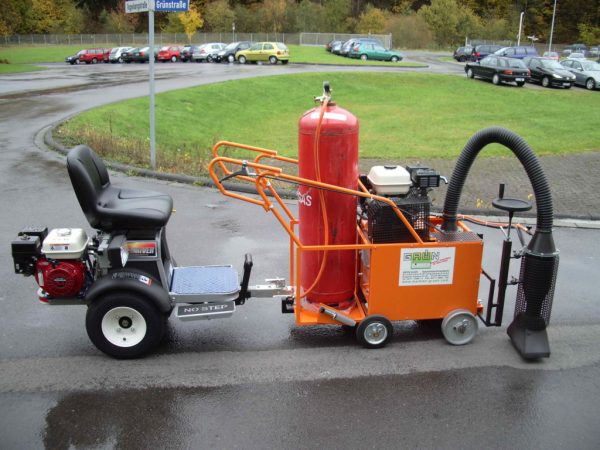

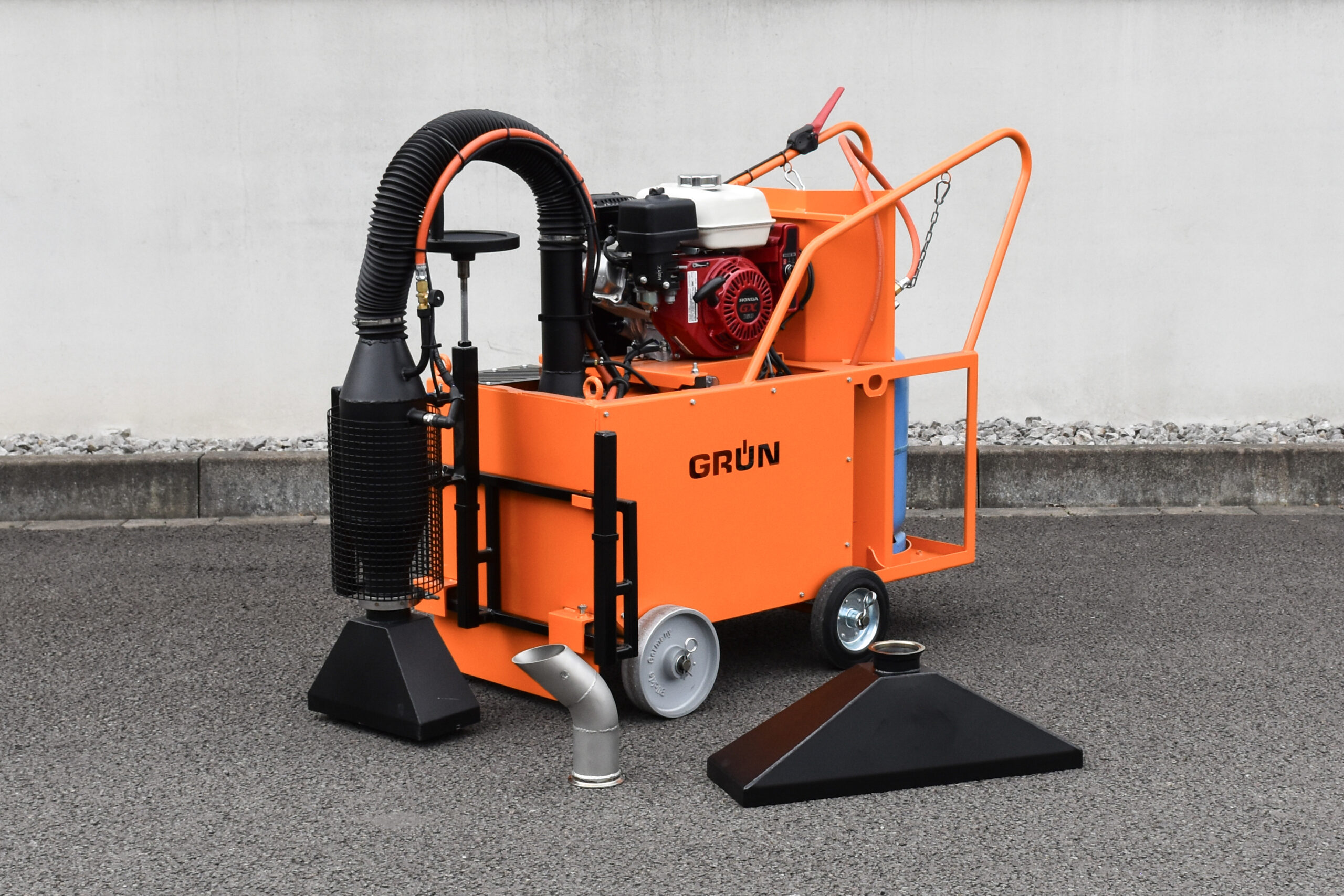

Additional equipment drying head 600 mm for tape removing, attachment kit for Line Driver, hot air joint nozzle
Weight without gas bottle approx. 142 kg
Dimensions Length x width x height approx. 1,70 m x 0,80 m x 1,00 m
Technical modifications and errors excepted, illustrations similar resp. partly including special accessories.
Stand: 30.11.2020_de
